Slim Jim Antenna

There are various Internet claims the Slim Jim has some magical properties giving it significant gain over other similar function antennas. These claims are misguided at best and patently false at worse.

The Slim Jim is functionally just a J-pole with one difference. The top section is altered by having a very close-spaced conductor in the top element. Since that additional conductor element is very close and excited in parallel with the original upper conductor, current at the top merely divides between the two elements. I'll get into this difference as currents and patterns are analyzed.

Details aside for now, the Slim Jim has the same radiating length, similar net currents in the various areas, and this of course result in the same or very similar pattern as a J-pole antenna a under the same test conditions. The Slim Jim retains the same difficult-to-cure common mode problems, and has the same pattern unpredictability, as a J-pole. Because  J-pole and Slim Jim antenna designs share virtually identical common mode and repeatability issues, either one can beat the other. Any differences will be rooted in the specific construction, cable, and mounting systems used.

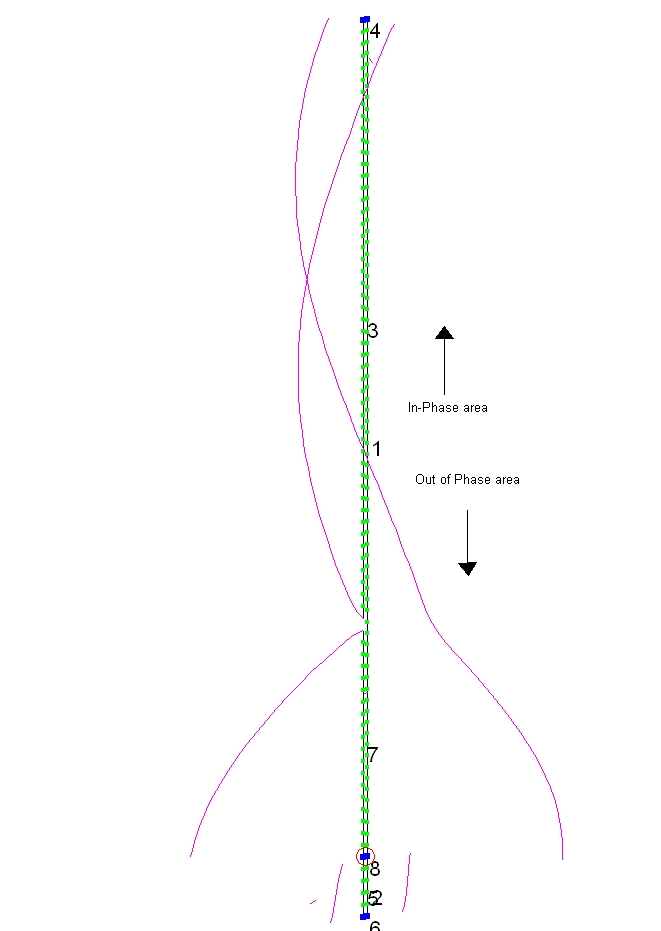

Here are Slim Jim antenna current shapes. In phase areas contribute to low angle radiation, while out-of-phase areas reduce radiation at right angles to the conductors. We see about 1/3 of the antenna length has out-of-phase current:



Slim Jim Currents



If we do vector sums of Slim Jim currents we find they are virtually identical to the J-pole.

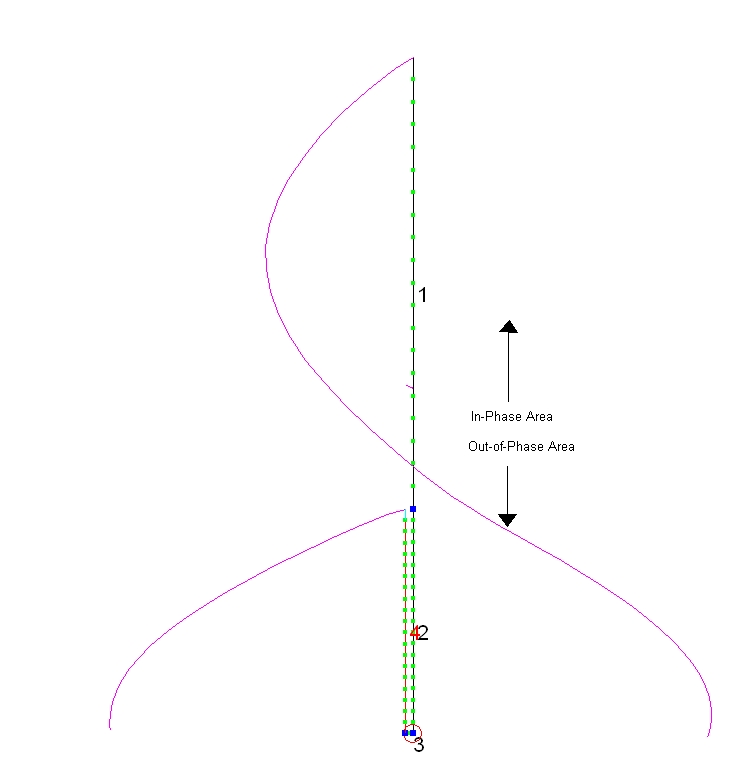

The J-pole is shown below, and it also has about 1/3 of the area with out-of-phase currents:

J-pole currents



Vector sums of  J-pole currents are virtually same as vector sums of Slim Jim currents. The result of this is radiation patterns and sensitivity to mast common mode are nearly identical. The Slim Jim is a J-pole with the top fold doing very little except splitting current between the original conductor and the new added conductor. The net or effective current is virtually the same. Any differences in the antennas are the result of both antenna's sensitivity to construction, feedline length and position, and mounting.

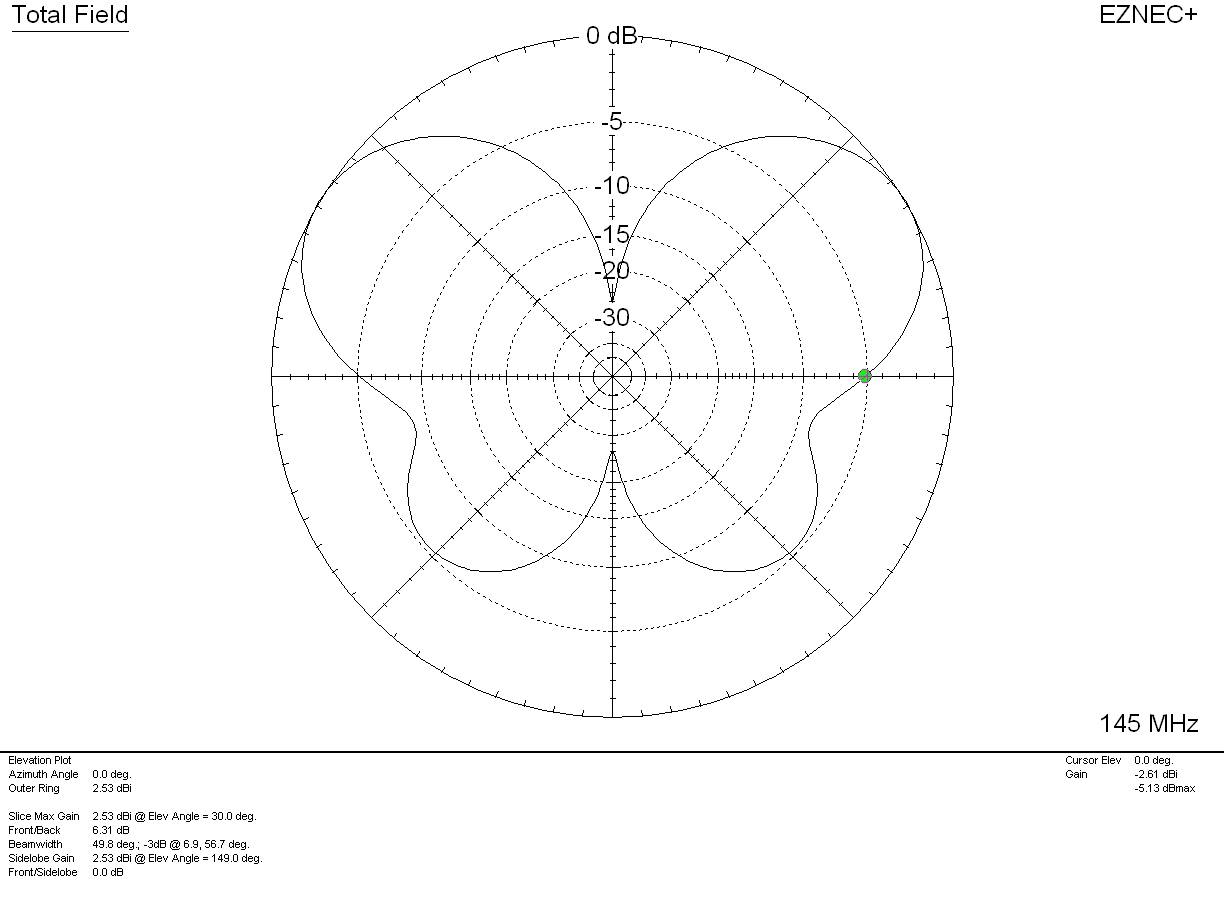

Pattern and Gain Comparison, Slim Jim and J-pole





soon
