Counterpoise Definition

"Counterpoise" has been used by radio amateurs since the very beginning of our hobby. When operators couldn't get a good earth ground, perhaps because they were on the second floor of a house, the common suggestion was to "use a counterpoise wire". A grid of conductors parallel to a dipole, laid on earth or suspended above earth, is often referred to as a counterpoise. After all, the word "radial" hardly fits a group of parallel wires with no real connection to the antenna's feed terminal. Counterpoise, in popular Ham radio conversation, has always described a conductor or group of conductors serving as an RF ground.

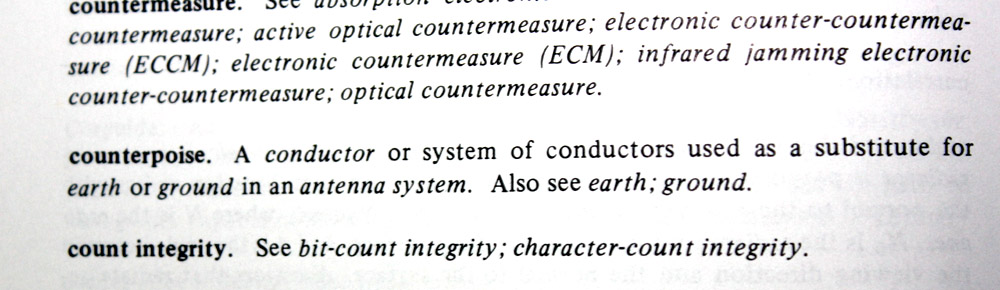

Counterpoise definitions can be found in dictionaries. Here is the definition of "counterpoise" appearing in the Communications Standard Dictionary:

definition of counterpoise dictionary















A counterpoise is a conductor or system of conductors used an earth or ground substitute in antenna systems. When we look at how the word has been commonly used, we see general use and dictionary definition agrees.

Model and Measurement Anomalies

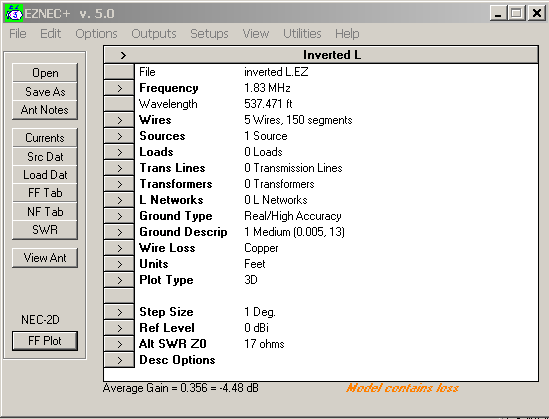

Average gain can be a useful tool in EZNEC, as can maximum or peak gain. This is how it is displayed:

Inverted  L average gain







In this case, using a 3D plot, we see Average Gain appear at the very bottom.

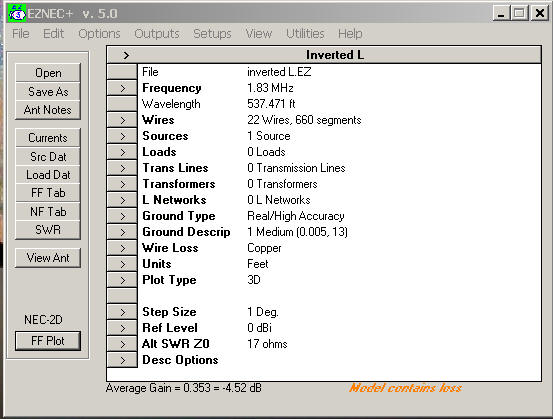

Average gain is .353, which translates to 35.3% radiation efficiency.

Also displayed is -4.52 dB, which is the total power loss of the entire system.

Average gain is also an indicator of improper modeling if average gain exceeds 1.00, or is unreasonably high.











Peak gain or maximum gain is another common performance indicator. It is displayed in the pattern plot:



inverted L 2D plot

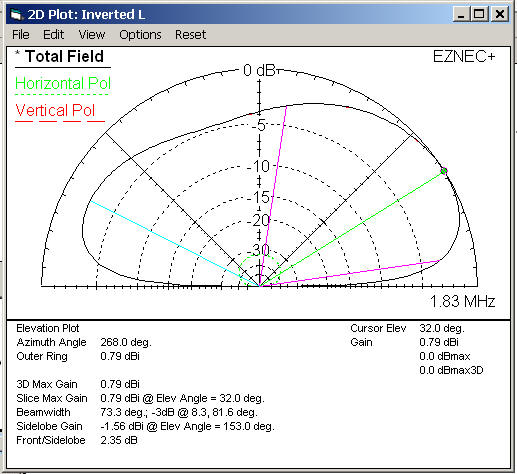

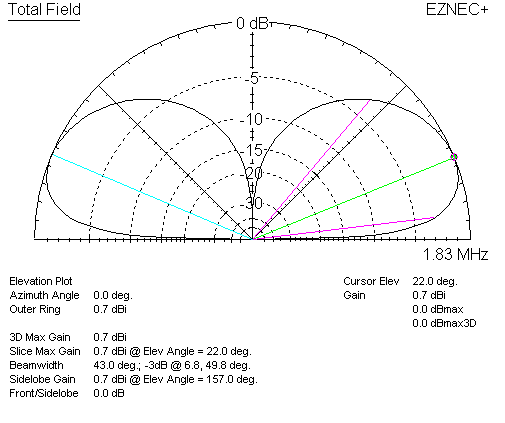

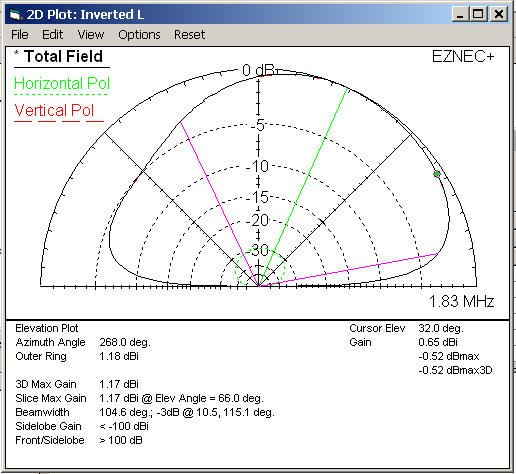

In this case we have a 3D maximum gain of .79 dBi at 32 degrees elevation

















inverted L no counterpoise below horiz







The counterpoise is made much smaller, and this appears to have slightly better efficiency and average gain, but it is misleading.



















Inverted L no counterpoise below horiz

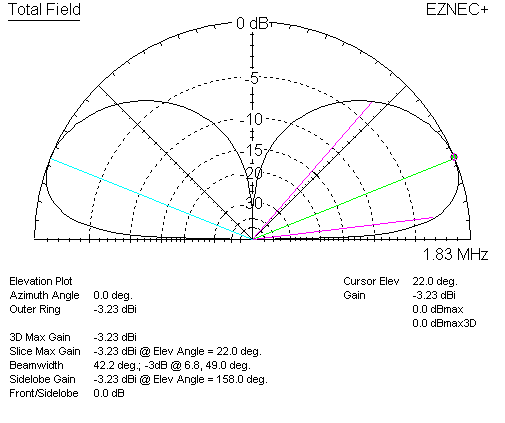

By looking at pattern we see significant reduction in the left area of pattern, and less gain at the lower, former maximum gain, angle. This is still a useful comparison for peak radiation at long distances.















Remember patterns are plotted at a very large distance over flat earth. This makes groundwave look like zero, and makes an already abused parameter, take off angle (TOA), even less useful.

In a real vertical antenna less than ~3/4 wave tall, field does NOT reach zero near the antenna at low angles.







An Inverted L, or any antenna with susceptibility to horizontal polarization, can give misleading ground efficiency results with compact or non-symmetrical counterpoises. A full counterpoise below the flattop suppresses horizontally polarized radiation.  By removing or reducing ground reflection below the horizontal antenna section, the low radiation angle vertically polarized Inverted L antenna is moved toward "low dipole mode". If we look at peak or average gain when changing to a counterpoise or ground system that no longer suppresses horizontal radiation, we can see what appear to be improvements. These peak gain or  efficiency improvements come from increased horizontal radiation component, rather than improved vertically polarized field strength.

After modeling many systems, I've concluded the best antenna for comparing ground systems is a top loaded vertical (for very short radiators), T vertical, or full-size λ/4 vertical for taller radiators. This keeps high angle "dipole mode" out of maximum gain or efficiency reports, especially when doing earth-height efficiency sensitivity reports or evaluations. Otherwise, if we use an antenna susceptible to horizontally polarized radiation, we must compare absolute gain at low angles in all important directions.

feed lines and matching systems should be included in all models. It is possible to "build" antennas that work very well in models, but rarely function like the model in real life. Some well-known authors, including one who pioneered early amateur modeling programs, have "invented" antennas that never achieve predicted results because they never included feed lines, or tested for sensitivity to feed line or matching system balance, or feed line or matching system loss. This applies across the board to all antenna models, both receiving and transmitting.

Those around me who do the most work and spend the most money, and have the poorest results, mostly willy-nilly change to a better system without thinking through changes, let alone documenting field strength changes. Every time one local amateur changes antennas, the new antenna is always "killer". He has gone from so many "killer" to even more "killer" antennas, yet skimmer shows him the same level as any other reasonable station from around here.

Another common, but low value, comparison method is contest results, or DXCC totals. Scores trend upward over time as people improve things. This is true for both skill, increased activity, and improved equipment. There are multiple causes at both ends influencing results, including noise level, activity, equipment, human factors, propagation, how enthusiastic we are, and even luck or fortune. We tend to operate more when we "feel good" about something new, and operating more always improves results.

Finally, false claims and junk science universally depend on test errors, operator "feelings", or signal reports to support radial departures from good methods and science. It is not all that difficult to install reliable reference antennas with proper construction and make A-B comparisons. The burden falls upon inventors of exceptional claims to provide reasonable comparisons with systems known to work to some standard, not on others to disprove them.

I can't imagine changing antennas here without any idea if the previous antenna was installed properly, or how the new antenna compared. I fell into this trap several times before in my life, and it slows my personal progress. I certainly have learned my lesson over the years. If I want to know something, I directly measure, or measure as directly as possible, what I want to know.

Counterpoise LF, HF, and MF Applications

Radials

Radial or buried screen systems, in direct soil contact, are generally preferred in permanent installations. On lower frequencies, buried systems work just as well as elevated systems. They also have much wider useable frequency range than counterpoise systems. The broad frequency response of buried or ground-contact systems not only helps cover wide radio frequency ranges, buried or ground contact systems also offer significant lightning and electrical safety advantages over ground-isolated systems. Buried or earth contact systems offer grounding from dc to very high frequencies.

There is a popular myth among Hams and technical writers that USA Standard Broadcast systems require 120 radials. From that myth, people assume a "perfect radial ground system" requires 120 radials, each 1/4 wavelength long. This leads some to write articles or offer advice stating peak efficiency requires 120 radials. The FCC actually says nothing of the sort. 120 radials is not, and never was, considered a minimum radial count for a "perfect ground" system.

If at least 90 radials λ/4 are used, the FCC does not require complex ground system efficiency proofs. Ninety radials is the threshold to avoid spending money proving the ground system works, even 90 radials is not a minimum requirement. Stations are free to use fewer radials, and often do use fewer radials, provided they prove adequate antenna system efficiency.



Exact FCC text is:

(4) At the present development of the art, it is considered that where a vertical radiator is employed with its base on the ground, the ground system should consist of buried radial wires at least one-fourth wave length long. There should be as many of these radials evenly spaced as practicable and in no event less than 90. (120 radials of 0.35 to 0.4 of a wave length in length and spaced 3° is considered an excellent ground system and in case of high base voltage, a base screen of suitable dimensions should be employed.)

(5) In case it is contended that the required antenna efficiency can be obtained with an antenna of height or ground system less than the minimum specified, a complete field strength survey must be supplied to the Commission showing that the field strength at a mile without absorption fulfills the minimum requirements. (See §73.186.) This field survey must be made by a qualified engineer using equipment of acceptable accuracy.

We see the FCC never said 120 radials make a perfect system, or even that 120 radials are the minimum requirement. The FCC said 90 radials will prevent having to prove efficiency, and 120 radials .35-.4 wavelengths, plus a base area screen if voltage is high, is considered "excellent ground system" effort.

Reinvention of the FCC section above is commonly used to exaggerate differences between conventional and elevated systems. The typical exaggeration is something to the effect of, "four elevated radials are equivalent to 120-radials on the ground". Such statements are very misleading. They imply or reinforce myths that 120 ground radials are required for a "perfect" ground. 120-radials were never established as a minimal "perfect ground". 120 radials are not even an "FCC mandated ground".

Still, practical radial systems can be large. Without question, earth-contact radial systems require more wire than proper elevated systems for the same single-band RF performance. Note this generalization is for a single band system, and also does not consider safety or lightning mitigation. At my location a 7 MHz 1/4λ vertical reaches the flat portion of efficiency improvement with approximately 20-25 buried radials. That is still a great deal of wire (~600 feet), although nowhere near the exaggerated 120-radial requirement implies (3,600 feet). At my location, 12-15 buried radials (about 400 feet of wire) equals four elevated resonant radials (about 120 feet of wire) when .05 wavelengths high on 40 meters. Wire savings is very close to 4:1, rather than the falsely implied 30:1.

Field strength of my 160-meter 1/4λ verticals, at my present location, stopped improving with around thirty-five ~1/4λ long ground-contact radials.

Under almost all conditions 40-50 straight radials, each about .2λ long, mitigates nearly all "ground" connection loss. Improvements going to 100 radials, or using longer radials, are less than 1dB. Less than 1dB change is almost always unnoticeable in terms of performance on skywave paths. For all practical purposes, we can consider 30 radials 100-feet long a nearly perfect 160-meter ground. I do have 100 buried radials 200 feet long on my 200-foot tower, but mostly for safety and to function as a counterpoise or reflective screen for other antennas in that field. I realize those radials are overkill for vertical efficiency.

I've also found base impedance a terrible way to judge efficiency. I've had systems with 60-ohm base impedances produce the same efficiency as systems with 36-ohm base impedances. Anyone making field strength and impedance measurements on a variety of systems will quickly learn field strength and impedance change are not locked in step. If we want to know field strength change, we must measure field strength.

Counterpoise Systems

Counterpoise systems are substitutes for large RF earth-based ground systems. Counterpoises, when properly implemented, can be very effective. Counterpoises can also be a source of frustration, providing poor lightning and safety grounds, encouraging local RFI (radio frequency interference), and sometimes creating receiver noise ingress problems. Other than bandwidth and lightning/safety grounding, properly installed counterpoise and radial systems will work about the same. Good performance is more about not doing something wrong in either system than any particular system being special or magical.

If something is wrong with an initial system, any change can be an improvement.

We sometimes cannot freely choose our ground or counterpoise systems. Marconi antennas or end-fed antenna systems located far from earth require counterpoises. Such systems are sometimes described as "groundplanes" or "elevated radials", although by definition they are also counterpoises. Another application better satisfied by counterpoises occurs with limited physical space, or where terrain or obstructions prohibit an adequate buried ground system of 20-30 reasonable-length radials.

While we should do the best we can, even compromise systems are better than no system at all.

Cautions using Counterpoises

Counterpoises and sparse radial systems, such as four-radial groundplane antennas, operate with considerable potential between the counterpoise and "ground". "Earthing" the counterpoise is generally a bad idea. Earthing occurs from counterpoise wires in very close proximity, or direct contact, with earth. Wired counterpoise to earth paths have a similar effect, often significantly reducing counterpoise efficiency. This includes accidental wired paths to earth through feed lines.

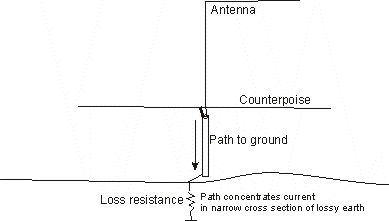

A second detrimental effect comes from creating unnecessarily concentrated electric induction (energy storage) and/or magnetic induction fields around the counterpoise system. Very short counterpoises, in terms of operating wavelength, cause very high voltages to appear between the counterpoise and surroundings, including lossy soil. Similarly, a single thin conductor has a very high surge impedance, because capacitance distributed along conductor length is small compared to series inductance. The high surge impedance increases electric field intensity by concentrating the electric field. Making matters worse, without end-loading, a short conductor concentrates current at the counterpoise feedpoint end, concentrating the current and magnetic field.

Concentrating any field in a smaller cross sectional area of lossy media increases loss. Reduced field concentration is why large area (in terms of wavelength) radial systems have less loss than small systems, and why a big thick carbon rod with large end-plate contacts that spread fields has less loss than the same carbon rod with point contacts  concentrating fields. Unfortunately, space limitations and local obstructions often restrict counterpoise or radial system size. When restrictions force a small system, we can maximize available performance. There are three ways to reduce earth losses near a counterpoise:

*The counterpoise can be made larger, with multiple cross wires. This allows fields to spread, rather than concentrate in lossy earth

*The counterpoise can be elevated some height above from earth. This also allows fields to spread, rather than concentrate in lossy earth

*All earth paths, including the feed line, must be isolated or insulated from the counterpoise. This prevents conducted currents from directly entering lossy soil

We sometimes hear radials or counterpoises need only be as long as the vertical is high. Truth is opposite this myth. Shorter verticals generally require larger and better grounds for peak efficiency. The sole exception to 20-30 radials "being enough" occurs more often when an efficiently designed and properly constructed vertical antenna is very short in terms of wavelength!

Counterpoises and Local Fields

It would be nice if we could cancel local reactive fields. Cancelling fields, or making small spatial antennas seem large, has been a common thread running through magical antenna systems. The E-H antenna, Super-C antenna, CFA (crossed field antenna), Isotron antenna, and other antennas claim to have special properties making them work like larger antennas. The common threads woven through these designs are special shapes, phase, reduced induction fields, or increased conductor thickness somehow mitigates losses associated with reduced size systems.

While there are ways to minimize deleterious interactions, most theories are founded in junk science. For example, proponents of small magnetic loops often claim lack of strong electric fields makes the loop less subject to local losses and noise. They never researched enough to see about λ/8 from the small magnetic loop, the electric field dominates! Nether the small electric dipole, or the small magnetic loop, maintains the same field dominance with distance.



There are dozens of ways to make small antennas or grounds that "work", with none being magical. Rest assured, if we cancel or eliminate any field, we no longer have an antenna or counterpoise. The real trick is to avoid design or installation errors.

Insulate and Isolate All Earth Paths

also see Verticals and Baluns page, and longwire page

If a radial system or counterpoise system has to be small, isolate the counterpoise from earth paths. Decouple feed line shields. This can be worth several dB.

Counterpoise earth path reduces signal

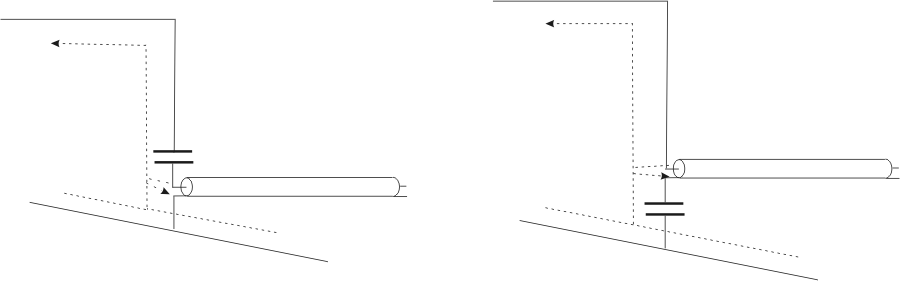

The feed line shield is a commonly overlooked path for common mode currents. The feed line can provide a path connecting earth resistance across the voltage between counterpoise and ground. There should always be a shield RF isolation device, a proper current balun or shield isolator will work. With a balun, balanced terminals connect to the counterpoise and antenna, just as with a dipole. While use of the term "current balun" may seem strange, but the counterpoise system is not perfectly balanced or perfectly unbalanced. The current balun does the same job it does in a dipole, ensuring the counterpoise and antenna terminal share equal and opposite currents. This isolates the feed line shield from the antenna feed terminals.

Failing to isolate the counterpoise from earth, which includes properly elevating and insulating the counterpoise, can result in several dB loss on transmitting, as well as bringing unwanted RF into the shack. While insulation is better than a bare wire lying directly on earth, wide air spacing is by far best.

feed lines are often left out of models. This can allow creation of systems that don't work as well as expected in the real world. By inserting a wire representing the coaxial cable shield path, we can see the effects of counterpoise to earth voltage in a model.

FCP Inverted L





One way to observe maximum counterpoise-to-earth voltage in a model is to insert a source set to zero current, or a load with very high impedance, in a wire connected from earth to the counterpoise terminal at the feedpoint.

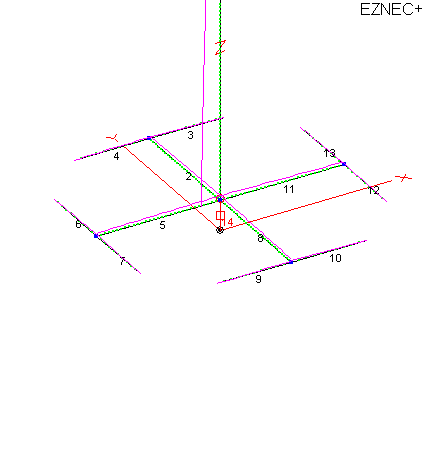

T counterpoise very short



This is a small non-resonant T system with ~40-foot ground area radius.

In this case, with non-resonant T counterpoises, voltage across a gap in wire 14 is 5300 volts RMS with 1500 watts applied to the antenna. This illustrates the enormous electric field between counterpoise and earth using low-density counterpoises with perfect ground-independent sources.

If we inserted a 1000 j500 common mode impedance balun in wire 14, balun dissipation would be 277 watts. Common mode current on feed line shield will be 0.52 amperes. A normal good-quality balun appears inadequate for isolating this small non-resonant counterpoise system. Even 5000-ohms balun impedance is too low. Isolation would require a high voltage resonant choke, parallel-tuned to 160 meters.

Projections indicate this system should be within 1-2 dB of sixty radials 100ft long, although optimum performance might require counterpoise heights as much as 0.1 foot above earth per meter wavelength. A 160-meter system might require 16 feet of counterpoise height, and that will directly subtract from effective radiator height.

If we don't isolate the ground path in this small non-resonant radial system, as much as 5 dB loss can occur. If you have a small untuned counterpoise on or near earth, or connected to earth through cable shields or ground rod, most of your transmitter power can be wasted heating the earth. Much more power can be dissipated in earth losses than radiating!











Non-resonant counterpoise with poor feedline choke









Without loading inductors in the four 8-foot high non-resonant radials, and with a garden variety feed line choke, we have -3.2 dBi estimated peak radiation. It can be even worse than this, but this might be considered typical.



















Same counterpoise same feedline choke resonant





This is the same radial system and antenna with a perfect ground isolation feed line choke. Radials are NOT resonant. The only thing changed was the feed line choke.

Resonance does not directly help the radials or antenna work better. Radials greatly reduce the voltage from counterpoise common point to "earth", and this makes decoupling the feeder much easier.

Look at the plot below, where radials are made resonant. Field strength is the same.



















reactive feed counterpoise non-resonant



Out-of-resonance radials will also modify the resonant frequency of the antenna system. Radial reactance is in series with the antenna feed. Unless the feed line has considerable common mode currents on the shield outside, adding reactance on the counterpoise side by mistuning the counterpoise changes resonance and SWR just as mistuning the antenna does. Mistuned radials will not only stress any feed line choke or cause RFI, mistuned radials will also shift system resonance.



short counterpoise resonant 8 ft high









Adding 600-ohm reactance loading inductors in each radial wire at the feedpoint, and tuning for minimum counterpoise-to-earth feedpoint voltage, reduces 1500-watt counterpoise feedpoint voltage from 5300 volts to just 36 volts. Unfortunately, the voltage null only holds over a small frequency range.

In this case, near radial resonant frequency, almost any balun or isolator will work. Running elevated radials or counterpoises out of resonance is clearly a very bad idea, yet this is exactly what many installations, including some manufactured systems, do. Resonating the counterpoise, if it is a small counterpoise, significantly reduces common mode problems.













Loaded radials at the T junction









Loading the radials at the T-junction improves field strength slightly, and makes the antenna less sensitive to ground type below the antenna and counterpoise height. This is a not a major increase with this particular example of height and earth type, although there are cases where improvement  can be greater.

















reference antenna 40 radials









This is the same antenna with 40 radials 100-feet long.

Should people be amazed small ground systems work well when properly installed? When we do a system properly, even a half-size system (40-foot radius in this case) works OK.

The primary advantages of large systems are increased immunity to lightning, reduced common mode on feed lines, and much wider operating bandwidth. Large systems are less sensitive to ground contact, more repeatable, less dangerous (lower voltages and field levels), and require less maintenance.











Resonate the Counterpoise

Resonating the counterpoise reduces counterpoise feedpoint-to-earth voltage. This reduces common mode on the feed line, and relaxes current balun or choke requirements.

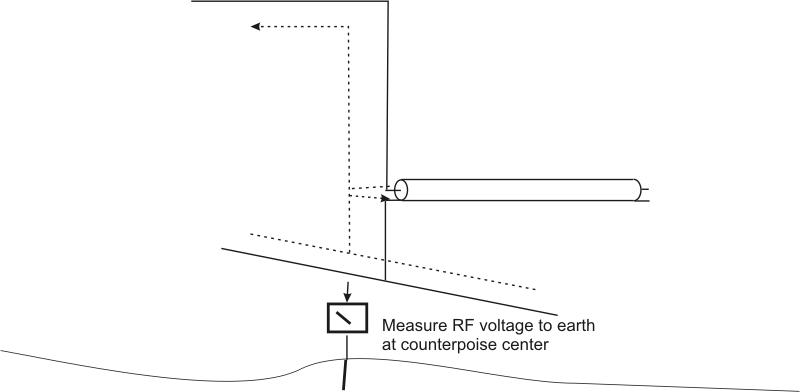

One way to resonate the counterpoise is to measure counterpoise to earth voltage at the counterpoise center, and adjust for minimum voltage.

measure counterpoise voltage to earth



A second way to tune the counterpoise is to disconnect it from the antenna, and feed it like a low dipole. Adjust it for resonance.

Frequency Sensitivity

Multiband systems present a unique problem. The counterpoise or radial system ideally must present a low common mode impedance across every operating band. This is an extremely difficult goal if multiple bands are present.

Frequency sensitivity of a counterpoise can be modeled by placing the counterpoise a few feet above a perfect ground, inserting a source in series with a 50-ohm load in a short very-thick vertical wire, and attaching the counterpoise to the top. By making a 50-ohm SWR sweep, a graphical representation of low and high common mode impedances appears. The vertical wire slightly skews frequency lower, but overall we get a good idea of frequency sensitivity and problem bands.

Care must be exercised looking at the results. Reactance is not quite as much problem as high resistance, because reactance can be "compensated out" with changes in antenna tuning. High resistance will increase feed impedance regardless of antenna length corrections or compensations, but will NOT necessarily increase system loss. High SWR indicates bands or ranges where feed line common mode or stress on feed line chokes will be problematic.

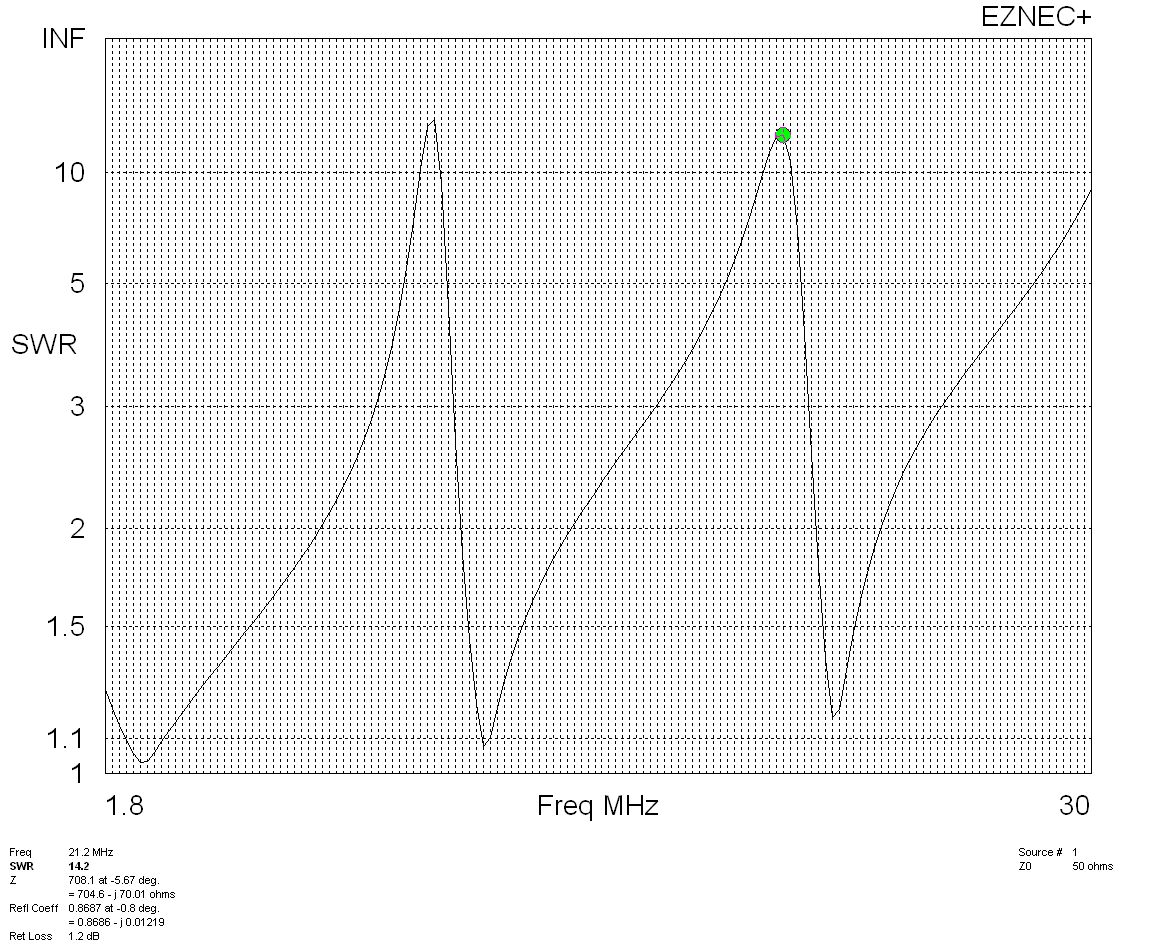

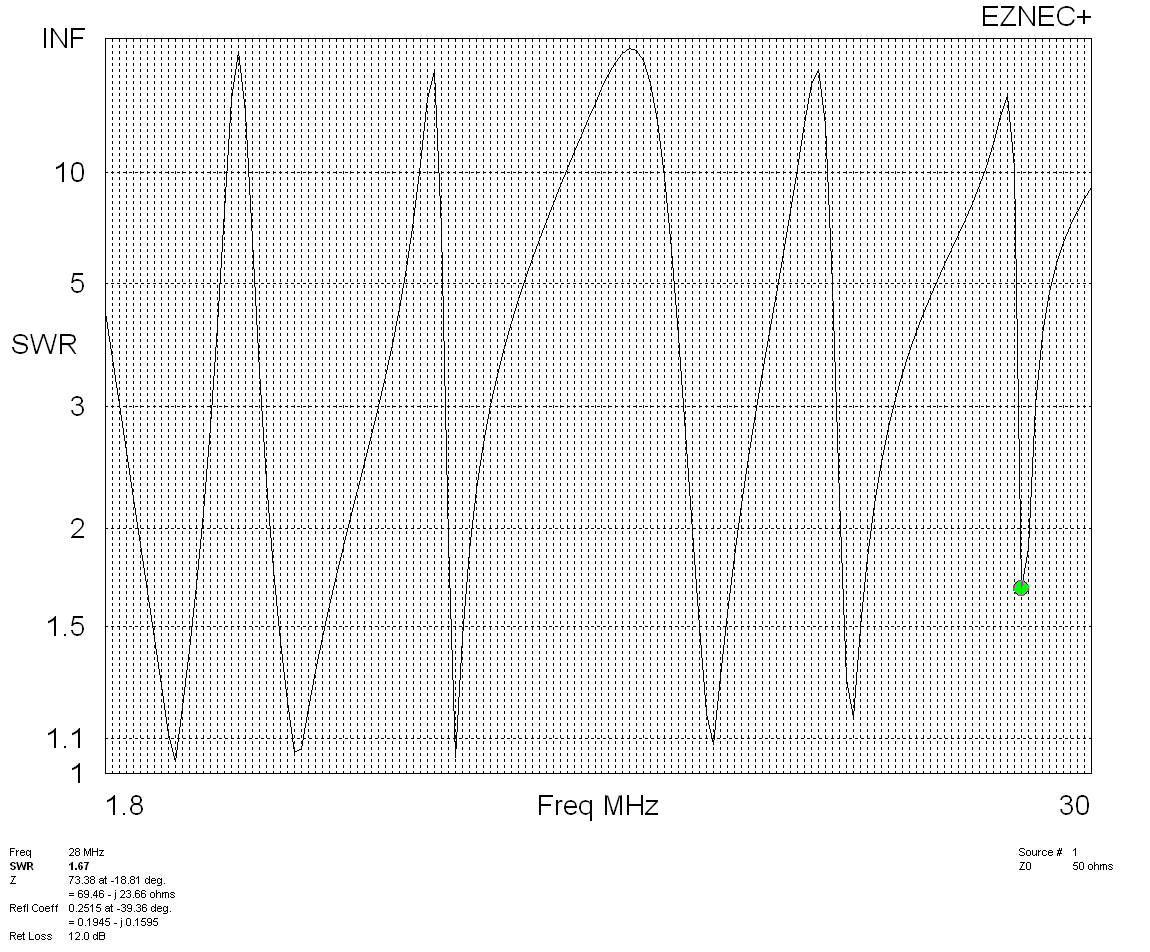

Here is a 1.8-30 MHz sweep of a 50-ft long single-wire counterpoise:

This plot shows a low common mode impedance at 4.8, 14.4, and 23.8 MHz. This was roughly expected, based on length.

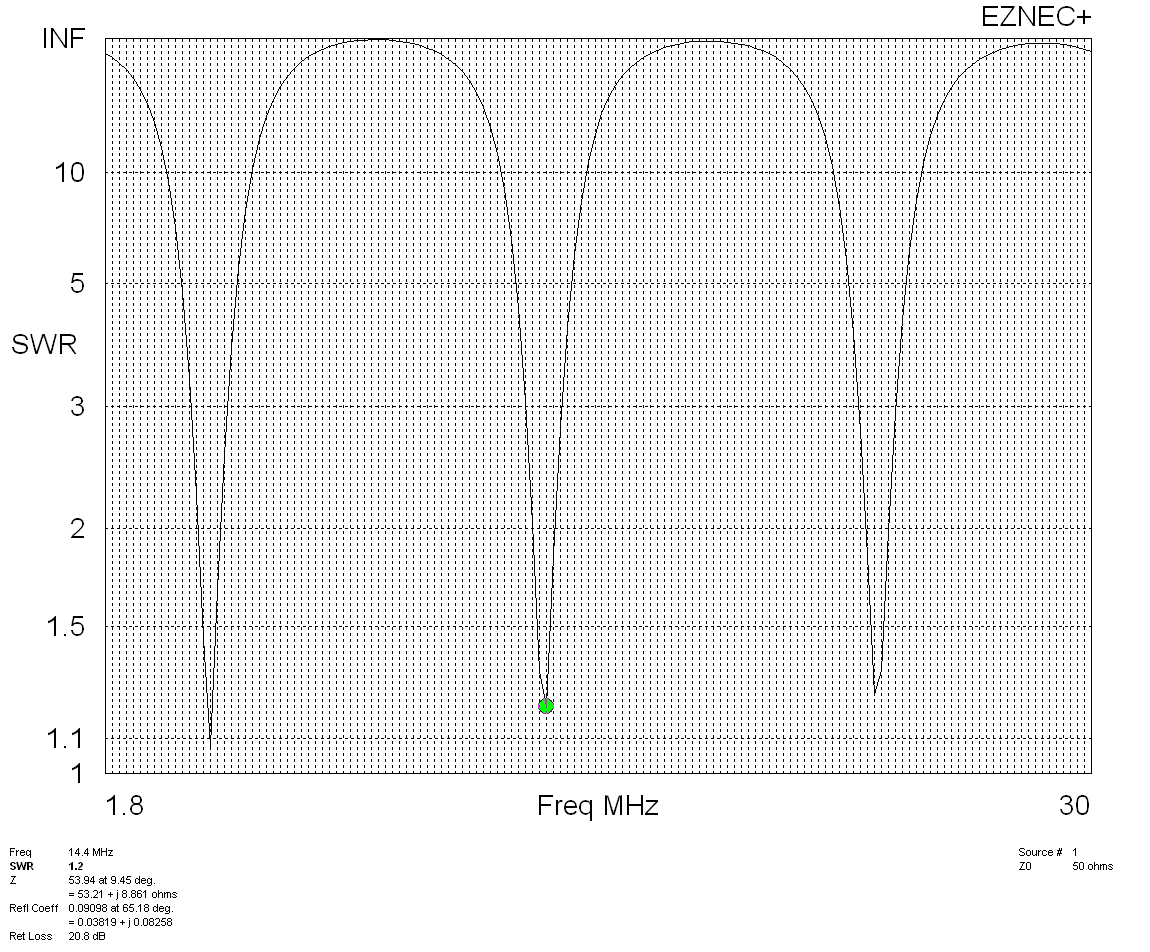

Making a four radial-wire counterpoise with 50-foot legs, we have:

 We can see noticeable broadening of SWR nulls, and a slight downward shift in frequency (mostly due to the vertical wire). Look at the following systems:

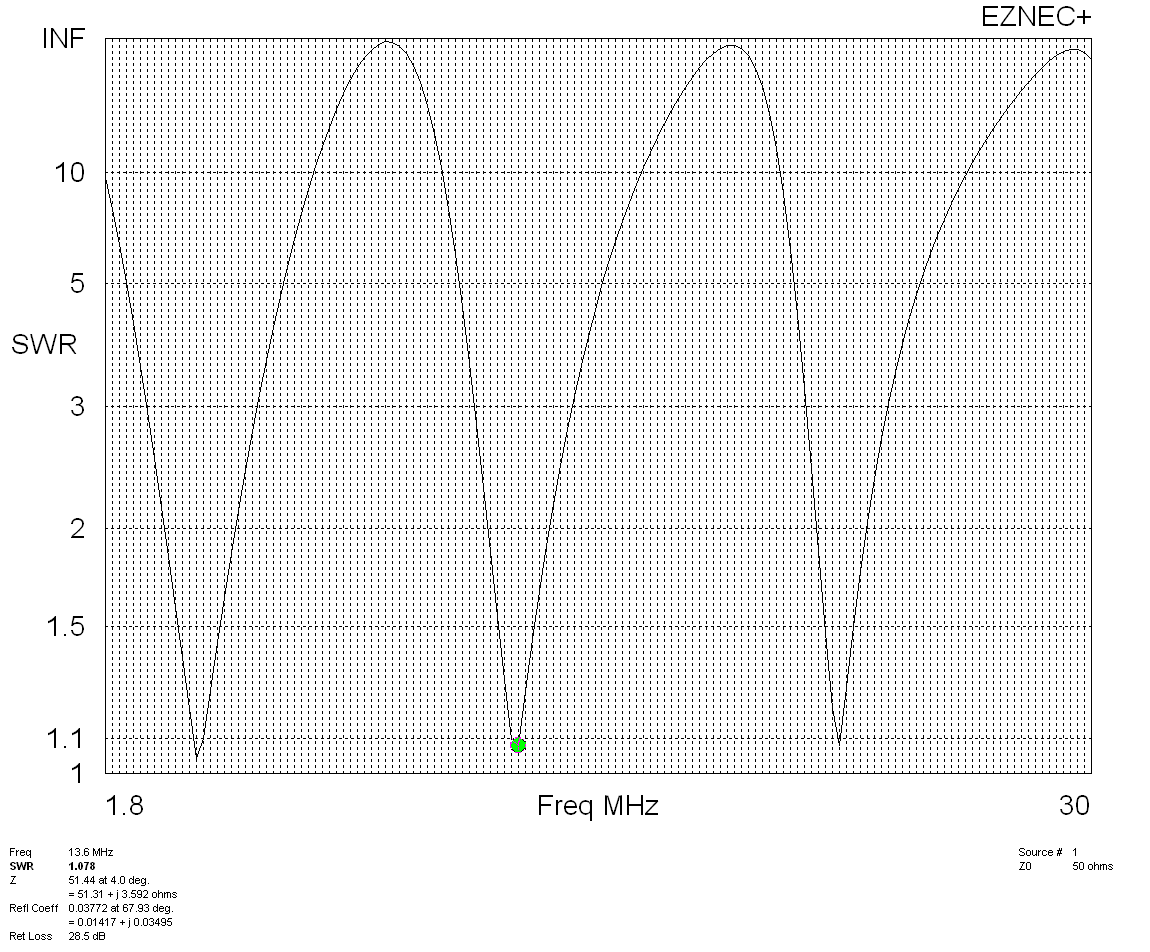

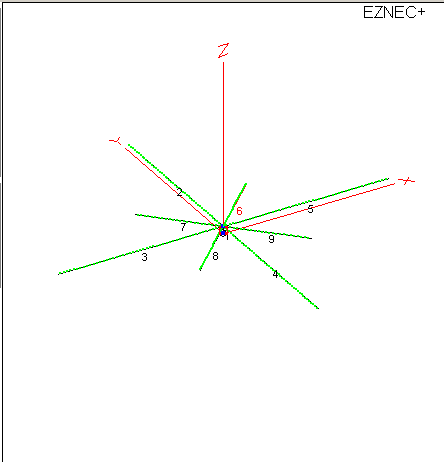

Thirty 50ft  radials:

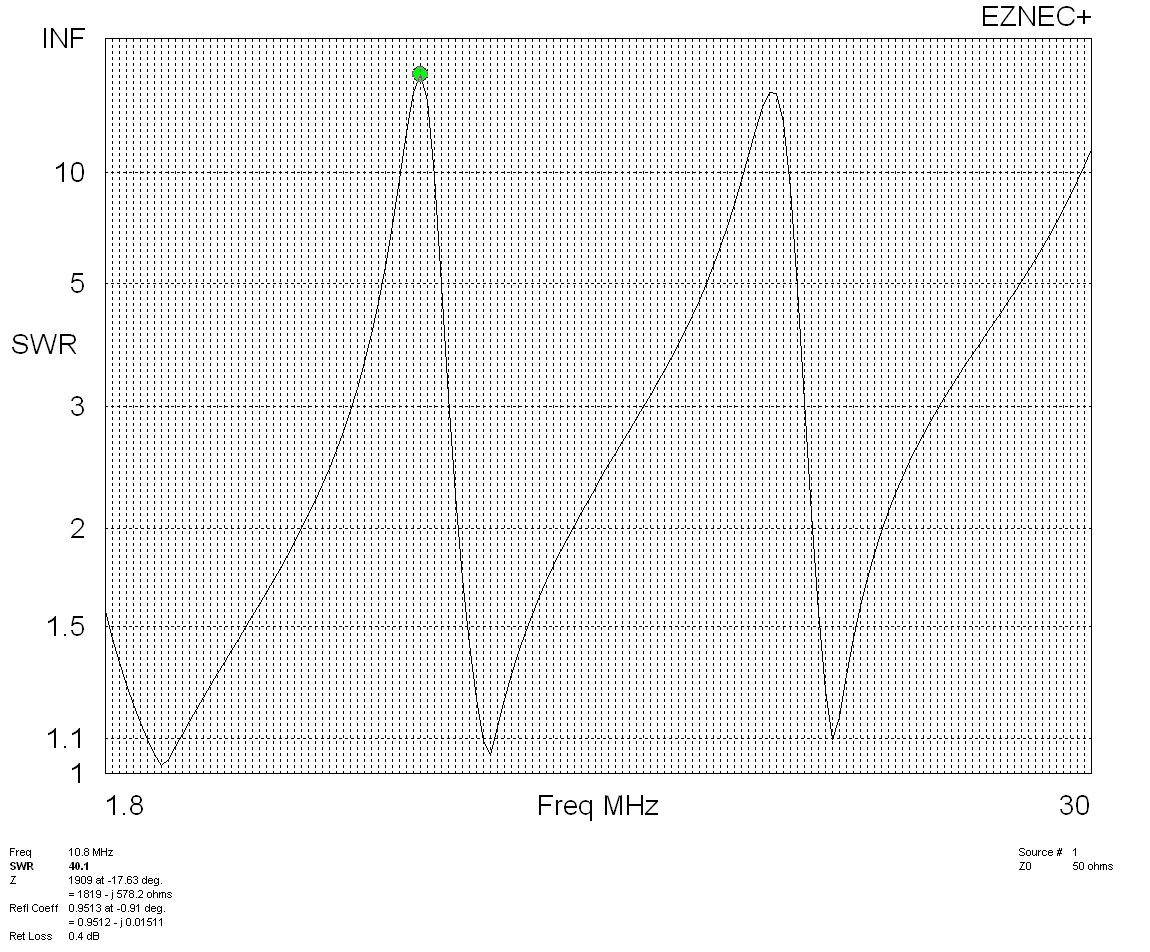

Thirty 50ft elevated radials are bad only in the area of 10.8 and 21 MHz.

Sixty 50ft radials:



Interlaced 50 and 25 foot radials

Interlaced radials



We now have two more sweet spots, and have further narrowed bad areas:

We sometimes get surprising results.  If we make the longer radials 60 feet, and the shorter radials 30 feet, we might assume we have fundamental 1/4λ coverage of 80 and 40 meters, as well as odd-harmonic coverage of the basic radial frequencies. We really have this plot:

We have reasonable 80, 40, 15, 12, and 10 meters response, but no 20 meter coverage, although the system is usable on most bands if we choke the feed line and tune the antenna to correct reactance. The system is not terribly bad on 160 meters.

What happens if we make the same 60 and 30 foot radials close together, with 2 foot open-end spacing?

We now lose 15 meters. This is because the radials act like open stubs, and detune 15 meters. We still have six nulls, but move and sharpen tuning and lose some bands.

So how do we cover multiple bands? It looks pretty difficult without a large screen or earth contact radials, unless we fiddle around until we move any impedance bumps out of band.



Cover Largest Spatial Area Possible

More linear spatial area spreads counterpoise voltage (electric field) and current (magnetic field).

Parallel Antenna's Horizontal Element Areas

With antennas like T's or L's, orient a counterpoise parallel and directly below horizontal antenna wires.

Various Configurations

T

Z or L

Y

X

Screen

Inductor Loaded

Folded or Stub Loaded
