Vacuum Tube Transmitter Designs

Power Supply Design

Power Supply discussion

Crystal Oscillators

A few basic guidelines should be followed even in simple minimal-component vacuum tube transmitters.

### Common Point and Bypassing

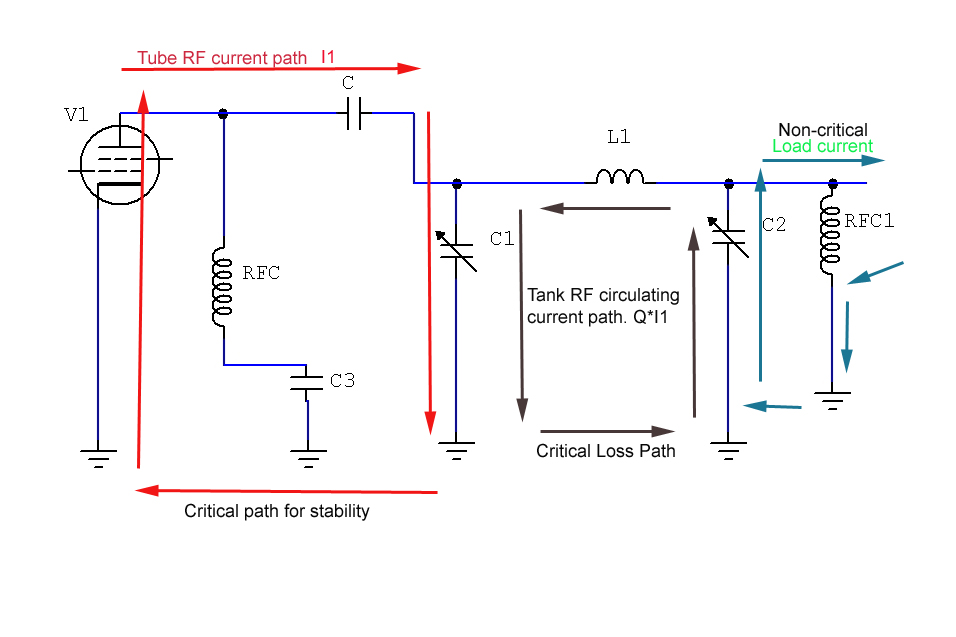

The vacuum tube "pulls" on the high voltage like a variable resistor. The path for that "pull" is from cathode to anode, the grids just control the instantaneous resistance of that path. You can read more about how a tube (or transistor) drives a tank circuit on this page.

Because of the tube acting like a variable resistance in series with the tank input, the RF current's tube path is as follows:

The PA tube cathode, unless intentionally floated at radio frequencies for RF drive or for RF feedback, should be solidly bypassed to a low impedance ground plane or a common point shared by C1 (the tank resonating or tuning capacitor). The red color path above should have minimum uncontrolled impedance, which means a layout with shortest possible and lowest impedance leads, including though ground.

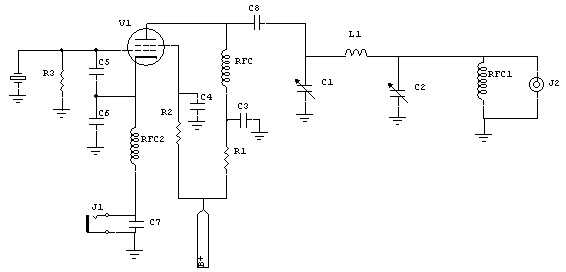

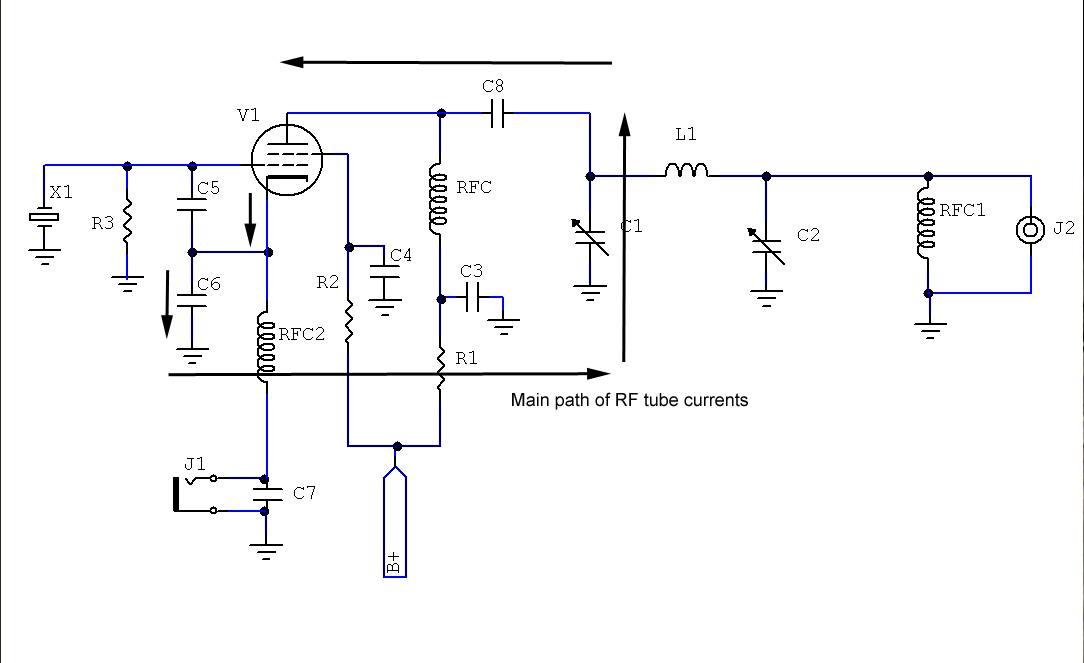

A typical power oscillator (PO) minimalist single tube transmitter of reasonably good compromise between complexity, cleanliness, repeatability, and reliability would have every component serve some critical function. The circuit in Colpitts (tapped capacitance) or Clapp (modified Colpitts) oscillator form, a reasonable circuit for PO use, would look like this:

Critical tube path is:

We see the RF output current conversion from the DC supply is primarily through C6, back to C1 and C8 through the tube.

## Component Function Power  Oscillator Colpitts  (or Clapp)

R3 sets the oscillating bias voltage developed by grid current. This tube has zero grid bias unless oscillating. If the tube is not oscillating, depending on screen and plate voltage, and if the cathode circuit is closed, the tube can exceed rated anode dissipation. Some fixed bias, either cathode or grid, would solve this issue. This circuit assumes damage from lack of oscillation is never a worry. If the tube is protective biased, it has to be biased at a safe dissipation but must not be near cutoff. If fixed bias is near cutoff the stage might not oscillate. R3 has a large effect on output power and crystal current. R3 is typically sized in the many ten's of thousands of ohms, somewhere between 47k and 470k is typical.  Less resistance is generally more power at the expense of crystal instabilitly and more sensitivity to loading and tuning.

C6 sets cathode RF voltage at point A for a given frequency range and tube cathode current. This capacitor should be as large as possible while still allowing oscillation on the highest band with the most sluggish crystal. This cap has the largest effect on crystal current and least effect on frequency.
C5 limits current into the grid on the positive half cycle and shifts phase in conjunction with the crystal. C5 should be the lowest value possible while still allowing oscillation on the lowest frequency with the most sluggish crystal. It also has a large effect on crystal frequency as it is made smaller.
C6 (and to some extent C5) has a large effect on crystal current, but R3 ultimately limits oscillator power since it controls tube operating bias and peak currents.

The voltage of all grid and cathode side capacitors should be at least the dc anode voltage, otherwise a tube fault or open key can damage these components. C5 is the least critical for voltage.

C4 is the screen bypass. It should have a low impedance to the ground end of both C6 and C1. A .001 to .01 uF ceramic disk of more than twice the dc supply voltage is good enough.

C3 is non-critical and has minimal current. C3 along with R1 form a low pass filter, reducing RF flowing back to the power supply.

C8 is a coupling (dc blocking) capacitor. It keeps dc voltage out of the tank circuit. In most cases almost any value over a few dozen pF will work the same! The voltage rating and quality is important. This capacitor along with RFC1 protects your life, so make sure the voltage rating and quality is good. A 1kV ceramic disc of fairly large physical size, like a typical .01uF 1kV disk, is good.

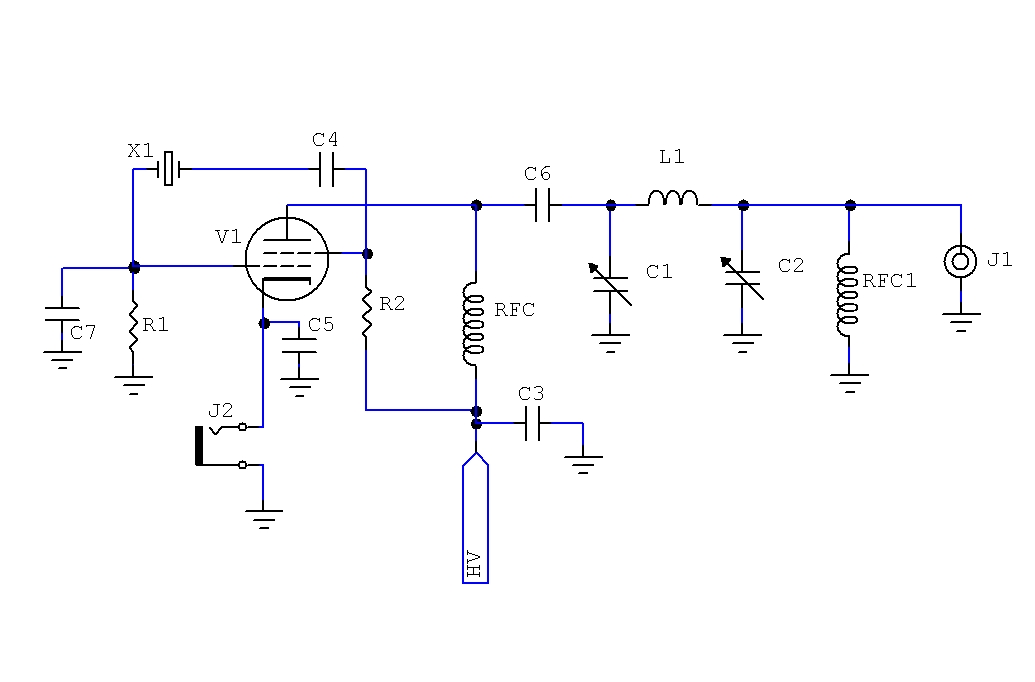

## Pierce Power Oscillator (PPO)

In the circuit above, the high current RF tube path is in a loop from C1 andC6,  through the tube anode-cathode resistance, through C5, to the bottom of C1. The tank circulating currents are through C1, L1, C2, and back through ground to C1. The tank path, C1-L1-C2 and back to C1 ground is by far the highest RF current path.

R1 sets grid bias by Ig * R1 = Eg1. Bias determines tube power for a given screen and plate voltage, so it naturally has a large effect on crystal current.

C7 along with R2 determines crystal current. There is quite a bit of interaction between components, and some small shunt capacitance from screen to ground is sometimes needed to allow R2 to be in a safe range for the tube.

C5 must be at the tube pin to groundplane or common point, the path from cathode to C1 ground has to be fairly low impedance.

C4 is just blocking, and can actually be a fairly low capacitance value.

It does not hurt to have a resistance, even very high value (millions of ohms) across the crystal to keep any dc charge off the crystal.

Vacuum Tube Transmitter Designs

Power Supplies

Power supplies are first, because everything depends on them. A transmitter's cleanliness and operating consistency can only be as good as the power supply permits.

Old power supplies were often not that good. Most supplies used filter chokes, which can be a very good thing with high vacuum rectifiers (reducing peak current). Unfortunately, input chokes were often the wrong size for the bleeder current, making regulation and peak currents worse than not even using a choke! There is nothing worse than carefully following a recipe and seeking out specific parts, just to have disastrous voltage regulation when done.

The primary advantage of a choke input filter is reduction of peak currents. By virtue of energy storage and release, a properly-sized choke provides a smoothly changing voltage boost throughout the low voltage part of the supply sine wave. Conversely, the same choke provides a bucking voltage near peaks. The mechanism behind this voltage bucking or boosting is an inductor's tendency to readjust voltages across the inductor as it tries to maintain constant current.

A properly sized input choke causes the rectifier to draw current throughout the entire conduction period of the input cycle. This current smoothing, almost appearing as a resistive load, extends in a closed loop from power mains all the way through the power transformer, rectifier system, and the first filter capacitor.

Capacitor input supplies can be very good for regulation, if high peak currents are properly dealt with. The only significant operational problems with higher power capacitor input supplies are caused by high peak currents, even while average currents are about the same as a choke input supply. A capacitor input supply draws all of the supply energy in a short period at the rising edge and just over the crest of each power line cycle. These high peak currents cause abnormal heating as they increase voltage drop in components. Capacitor input supplies can be particularly tough on vacuum tubes, and on old transformers using smaller copper sizes. To handle the apparent power factor (APF) of heavy charging currents at the leading edge of each sine wave voltage peak, capacitor input supplies should use a little larger copper winding size. The capacitor input supply, in essence, runs only on line voltage peaks. All load power is "taken off the peaks". This actually can flatten the peak of the line sine wave, causing line voltage to measure almost normal on meters even while the mains are sagging on peaks.

An example of a good power supply is in the AL1200 (AL12 series) power supplies. I specifically designed the transformer for very tight coupling with minimal flux leakage, and the largest possible copper size that would fit in the core window. Because of the low ESR transformer, peak current is often limited just by the ESR of the power mains. With a really stiff mains, the AL12 series will hold voltage within 10% from no load to full load. The price for this voltage stability is very high peak current. I've measured about 40-50 amps peak current at the repeating line sine wave voltage crest leading edges, while average current over the entire cycle is only about 12 amps. This high peak-to-average current ratio clearly calls for increased copper size throughout the primary system. Capacitor input designs must minimize series resistance, or regulation falls apart.

In comparison, a well-designed choke input supply (with properly sized choke) has an APF (apparent power factor) of nearly unity. Current is drawn in smooth step with voltage over the entire sine wave, even the descending slope of the waveform! The smooth current window allows energy to be extracted from the mains over the entire cycle. This allows much smaller copper sizes, since the choke input supply requires far less attention to transformer and power line ESR (equivalent series resistance). With a properly sized input choke and good components, the power supply's line loading appears as a pure resistance.

The bottom line on this is the user has two choices:

1.) Live with the high currents, while maintaining good life and good regulation, by using low ESR (equivalent series resistance) transformers, solid state rectifiers, and  higher value filter capacitors

2.) Use a properly designed choke input with higher ESR components. "Properly designed" is the key here, and proper design requires a critical minimum choke inductance for the supply's load impedance under all operating loads

As a closing thought, we often try to correct design issues through power wasting in bleeder resistors. A low bleeder resistance decreases the ratio between no load and  full load current. If, for example, we waste as much power in the bleeder as transmitter power demand changes from zero load to full load, we now have a load change of 50%. We halve the load change as a percentage, so we might double regulation in a system by wasting power. A better solution might be to use a better initial circuit design, or the correct components, so we need minimal wasted power (heat).

By the way, a 50 watt bleeder dissipating 20 watts contributes just as much heat to the cabinet inside as a 25 watt resistor dissipating 20 watts. The BTU/hr is exactly the same. X watts of  heat will be X watts of cabinet temperature rise. The higher power component will be physically larger and run at less temperature, but the heat output will be exactly the same. The cabinet temperature will rise exactly the same amount for the same actual power being dissipated, so oversized resistors will not make "the box around them" cooler.

When using a vacuum tube rectifier in a transmitter with widely varying load currents, a choke input filter with proper rating choke will be the superior system. If solid state parts are an option, a capacitor input supply is a much better choice for size, cost, and weight.

The required choke inductance is surprising, it will be pretty large. At 120 Hz (60 Hz and full wave rectifier), minimum bleeder current in milliamperes should be well over E/L. With 700 volts and 5 henries,  the bleeder should draw well over 700/5 = 140 mA.

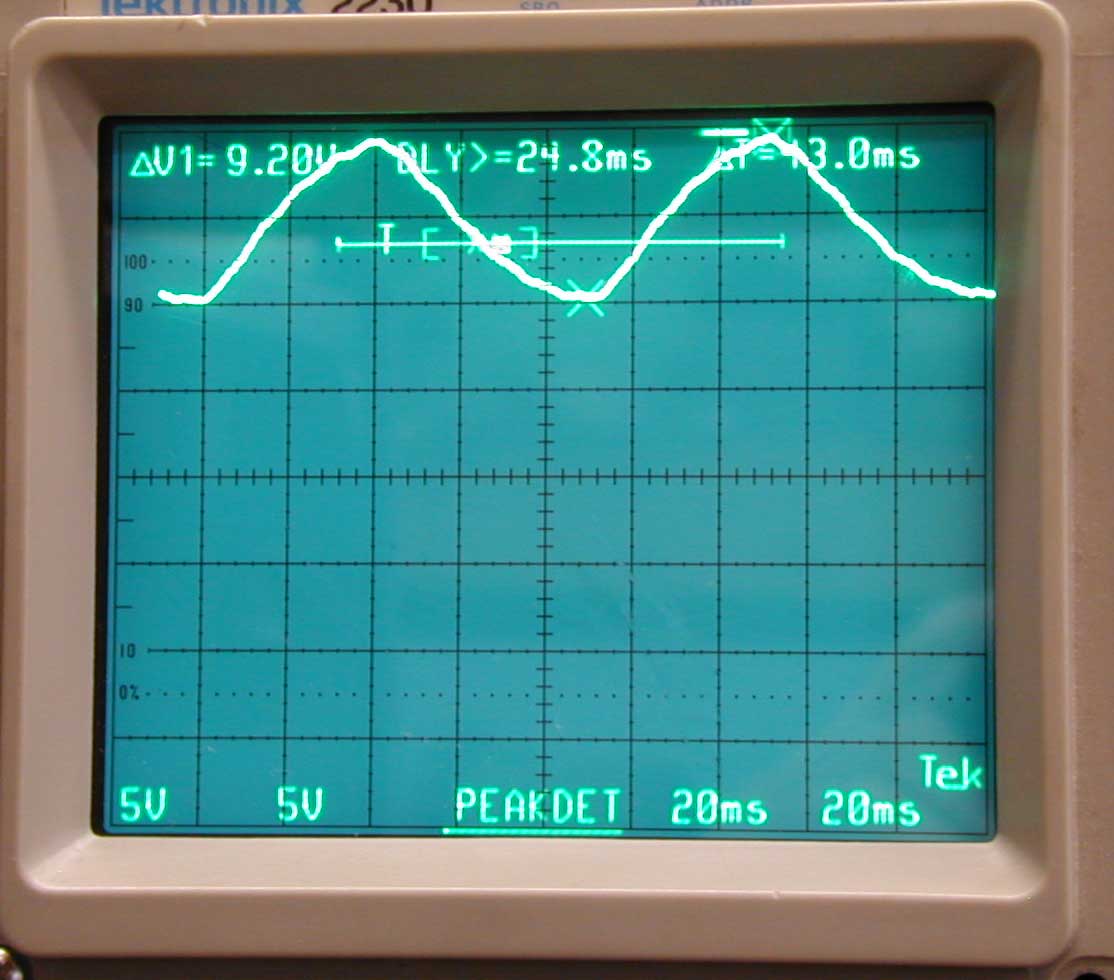

Another factor is voltage ringing or bounce caused by the choke inductance and filter capacitance. This "bounce" can result in wild but slow gyrations in supply voltage at a syllabic rate in a SSB transmitter of class B modulator, or at a code character rate using CW.  This bounce is minimized using an excessively large value of filter capacitance and minimal inductance. Here is a screen shot of power supply bounce in my Viking Valiant when sending a string of dots. The bounce is caused by the filter choke's less than ideal load response. It is not caused by the supply being "weak". The supply is actually quite good. The scale is 100 volts per division, peak-to-peak bounce is around 200 volts:

fig. 1

Unless there is some particular reason to avoid solid state rectifiers, or unless APF is critical, solid state rectifiers followed by a capacitor input supply are a much more stable solution.  If load current dramatically varies, like in a CW transmitter,  it is probably best to completely avoid using a filter choke (even in a pi type supply filter). Contrary to old outdated opinions, transformers and components will live just fine in a capacitor input supply. The exception would be where tube-type rectifiers are used. While regulation will not be perfect, a solid state capacitor input supply's regulation will typically be far better than a poorly planned or crudely implemented choke supply. Expect 10% regulation, or better, from a well-designed capacitor input supply. A choke supply is much more expensive and heavy, and will be about the same if you are careful. If the designer or builder is not careful, a choke input supply can easily have 40% voltage sag!

There are an abundance of bad power supply designs in Handbooks, Ham transmitters, and articles! Some are beyond bad, and should only be classified as "terrible".

A well-designed choke input supply with proper bleeder current outputs about .9 times the RMS voltage of a transformer, while a capacitor input supply with solid state rectifier outputs around 1.4 times. Keep this in mind while selecting a transformer. Also remember, most rectifier tubes have a pretty high internal impedance. Most rectifier tubes do not "go well" with high power capacitor input supplies. If you really want to run a tube type rectifier, the performance problems and complexity of a choke input supply might become a necessity.

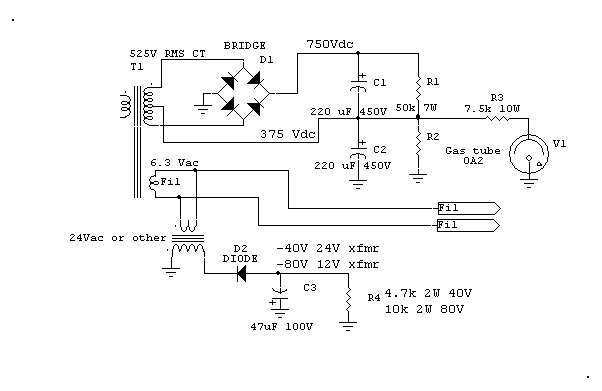

Dual Voltage Supply with Bias

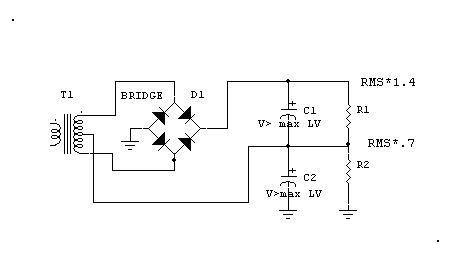

A center tapped transformer can be used to supply stable PA HV and screen, as well as a lower voltage for early stages. The construction method below acts as a full wave CT supply for low voltage, and as  FW bridge supply for HV. This system allows equal voltage capacitors without the usual equalizing worries. Because the capacitors are fixed in voltage division, capacitors do not need to be the same value. The low voltage supply can have more capacitance, better suiting increased filter requirements of sensitive, low-level, stages like oscillators and screen grids.  This much better for voltage stability, and it produces less heat, than the common method of creating low voltage supplies through large dropping resistors from the full high voltage.

fig 2

This supply, with an appropriate size 500 Vrms center tapped transformer, would make a pretty good 700V / 350V transmitter supply for 6146's, 807's, and similar tubes. It is simple, easy to build, and lacks complications of choke input supplies. It provides a very stable "half-voltage" source.

Bias voltages can be derived from a separate winding, a rectifier negative lead filter choke, or from a very small "backwards" transformer boosting tube filament voltage. A 120 to 24 volt transformer, for example, makes a cheap safe 6.3 to 30 volt AC (50 Vdc bias) supply. Bias supplies are unique, in that a class AB2, B2 or class C tube pushes grid current back into the bias supply. The bias supply below is derived by boosting the filament through a backwards through a very small transformer, although conventional transformer could be used. Resistor R4 must draw several times the grid current expected in the biased stage(s) to ensure relatively stable bias voltage. R4 could be a slider resistor with multiple taps, or split into two or three resistors, to provide several bias voltages. At 4.7k

Expanding on this a bit more:

VR Tube Design

VR (voltage regulator) tubes are not like Zeners. VR tubes have an ignition or starting voltage, a maximum and minimum current, and a running voltage. The tube must be held within those ratings during operation, or it can do some very unusual or unexpected things.

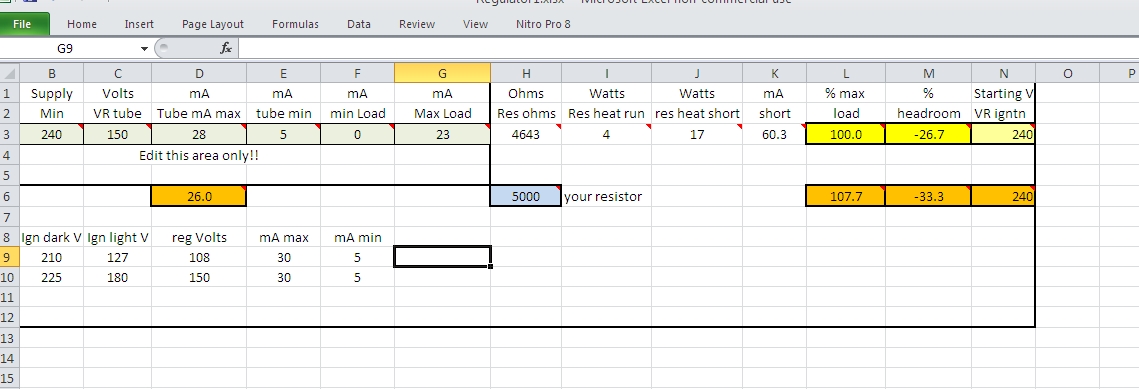

Let's say we have a rig with 280 volts no load voltage at maximum power line, and 240 volts full load voltage at minimum power line voltage, and we want to regulate a 6J5 oscillator. The 6J5 draws 23 mA worse case with the worse crystal, and 0 mA when the key is open. (The VR tube has to unloaded when it starts, or have to allow for that starting load.)

Keying Circuits

There are two primary types of old tube radio keying circuits, grid block and cathode. While grid block is touted as the best, cathode keying can be just as clean and safe. As a matter of fact, if you are willing to use a few semiconductors, cathode keying can be easier to implement and much safer than grid block!

Let's look at what goes right and wrong with keying circuits.

Cathode Keying

Cathode keying is a form of self-bias control of tubes. The cathode is lifted from ground, and floats up to a positive voltage above the grid's cutoff voltage required to pinch off anode and screen currents. The open key voltage depends entirely on the negative grid biasing, in relationship to the cathode's positive voltage, required to cut the tube off. The positive key voltage can be as low as a few volts, or as high as hundreds of volts, with the same tubes!! I'll show why that happens, and how to better configure systems.

Tube Cutoff

In a tetrode or pentode, cutoff bias is heavily dependent on screen voltage. Cutoff bias is almost independent of anode voltage, but cathode open circuit voltage is highly dependent on screen voltage and control grid voltages!

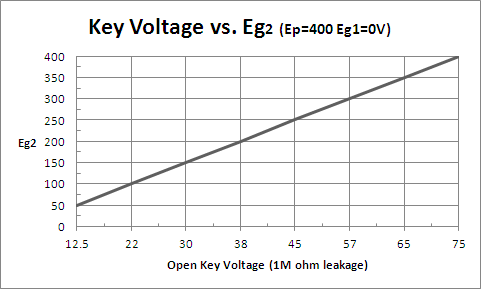

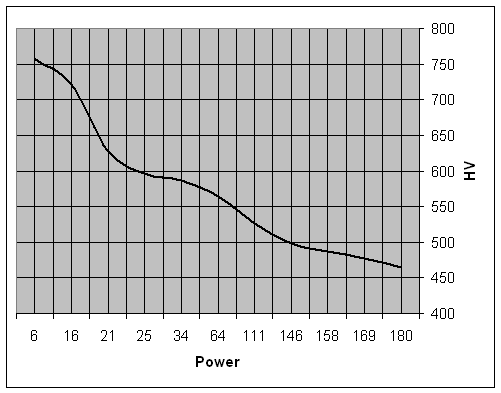

I plotted the following graph of a 6L6GC tube's open circuit cathode voltage:

fig3

This shows a serious flaw in taking unregulated screen voltage through a dropping resistor from a PA final amplifier anode supply. The screen voltage will always rise to the anode supply voltage when the key is up. Obtaining voltage from the anode supply without shunt clamping or shunt regulation will severely increase either control grid negative bias for grid block or oscillator keying, or increase cathode voltage across a cathode key.

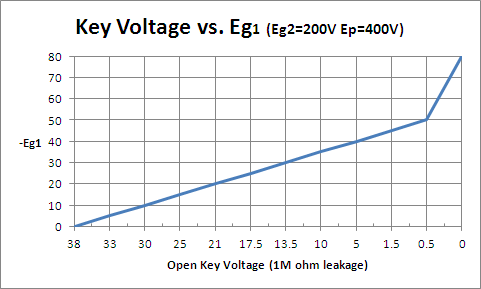

Control grid voltage affects open-key voltage by increasing open key voltage if positive to chassis, and decreasing open key voltage if negative. The following graph shows open key voltage with screen voltage regulated at 200 volts, anode voltage of 400 volts, while grid bias is varied from -0 to -80 volts:

fig 4

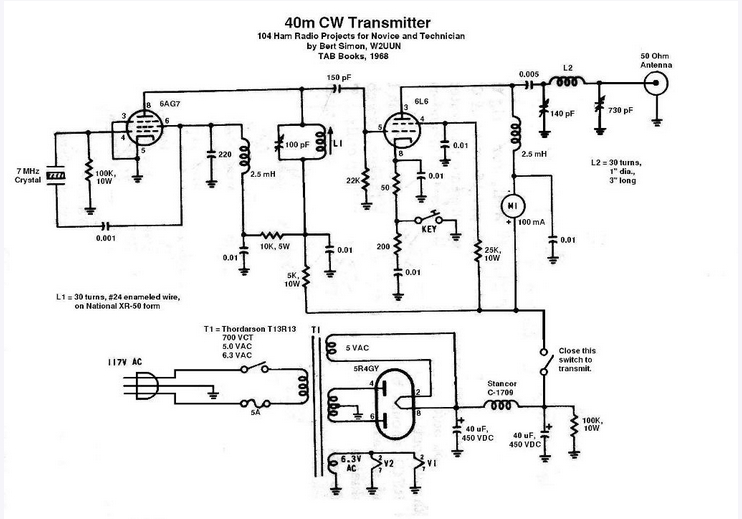

Looking at a typical simple transmitter found on Internet and various other places, we see circuits like this:

fig5

1.) Note the tube has no control grid bias. The required negative grid voltage is derived entirely from rectification in the control grid-cathode circuit. I'll discuss the problem with this in detail later, but it is not a good system. It is not good for loss of drive, it is not good for keyclicks, and it is not good for cathode key voltage.

2.) Some self-bias without drive is obtained from a 50-ohm cathode resistor, but again, it produces maximum bias when minimum bias is actually required, and minimum bias when we want the tube cut off. The key filter, a 200 ohm resistor and .01 uF capacitor, has virtually no effect on over-the-air clicks or bandwidth.

3.) The tube sources screen voltage from HV though a 25k resistor. Use of a series resistor to a tube element, with no shunt load or regulation, works fine in steady load conditions. It is a terrible method in any stage that has greatly varying screen currents, because it does exactly the opposite of what we want. This circuit, while simple, allows the screen voltage to rise to full supply voltage whenever the key is up. While typical closed-key screen voltage with proper tuning might be around 200 volts, open key screen voltage would place the screen at full no-load plate voltage.

The method of using an open-ended series screen dropping resistor, along with lack of fixed control grid bias, causes a radical increase in required cut-off bias (open key voltage).  Referring to the 6L6GC tube I measured in figure 4, we see a properly biased 6L6 tube would only require 10-20 volts of open key voltage to cut off the transmitter. With the circuit above, since the screen rises to ~400 volts, cathode open key voltage will be somewhere up around 75 volts.

The open key voltage of 75 volts further increases if the oscillator is running, as in the circuit above, driving RF voltage to the final amplifier grid. This happens because the tube's grid acts like a detector anode, and will pull the cathode well above the peak positive grid voltage plus the original open key voltage, or at least above a portion of that original voltage in addition to the grid drive voltage. Depending on oscillator peak output at the PA grid, final amplifier open key voltage might easily exceed 100 volts.

Every time the key is closed, the key contacts have to discharge two .01 uF capacitors from a hundred volts to zero volts. While the 50 ohm cathode resistor and 200 ohm dampening resistor reduce key spark, they key still has to pull high voltages to ground. Making things worse, the screen has charged its bypass to 400 volts. With the screen at 400 volts and control grid bias at zero,  key closure produces a very large leading edge power spike.

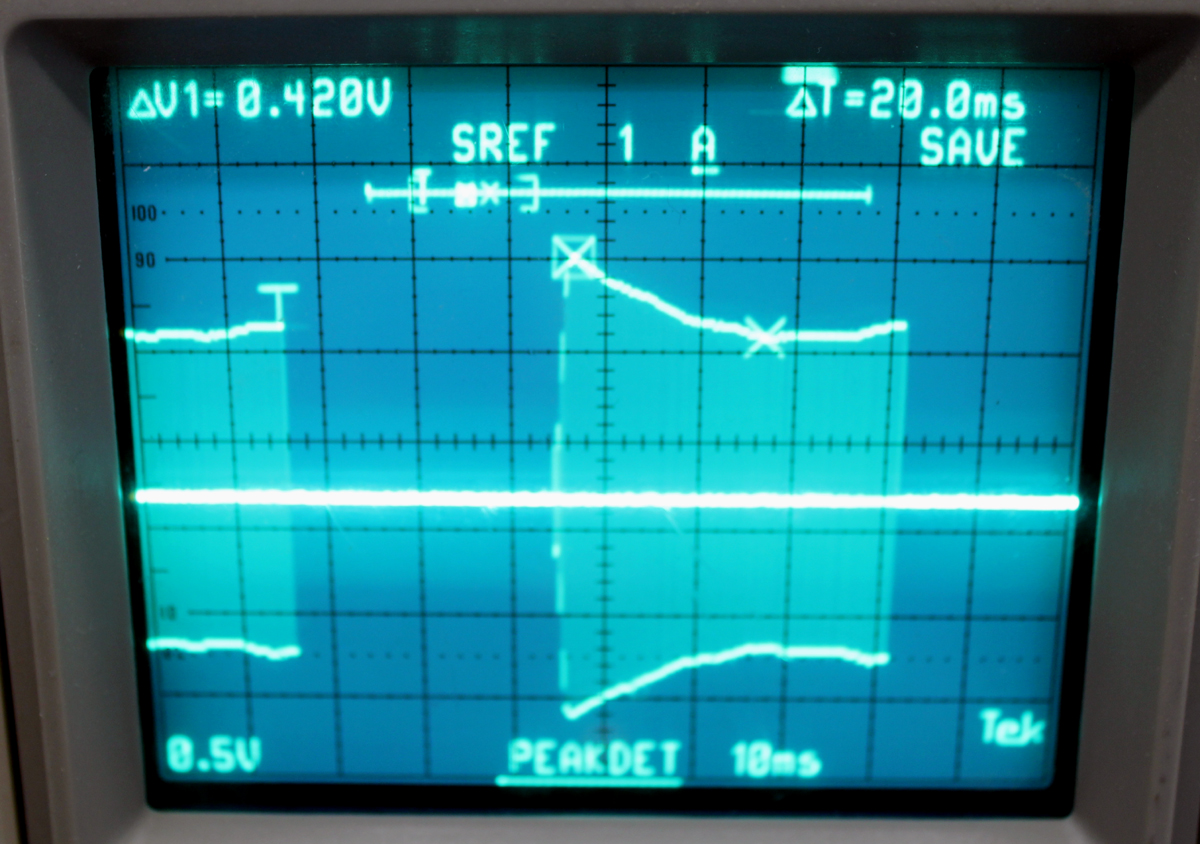

In the above transmitter measurement, RF envelope voltage (scaled from a sample tap on a dummy load through an attenuator) decreases from 1.85 volts peak to 1.43 volts, and .42 volt change. This represents a power change from 34.2 watts at the leading edge to 20.4 watts at the minimum during every consecutive dot or dash. The significant key click energy, however, is generated in the sharp leading and tailing edges of the envelope, not the power overshoot. The leading edge just has more base power to generate clicks.

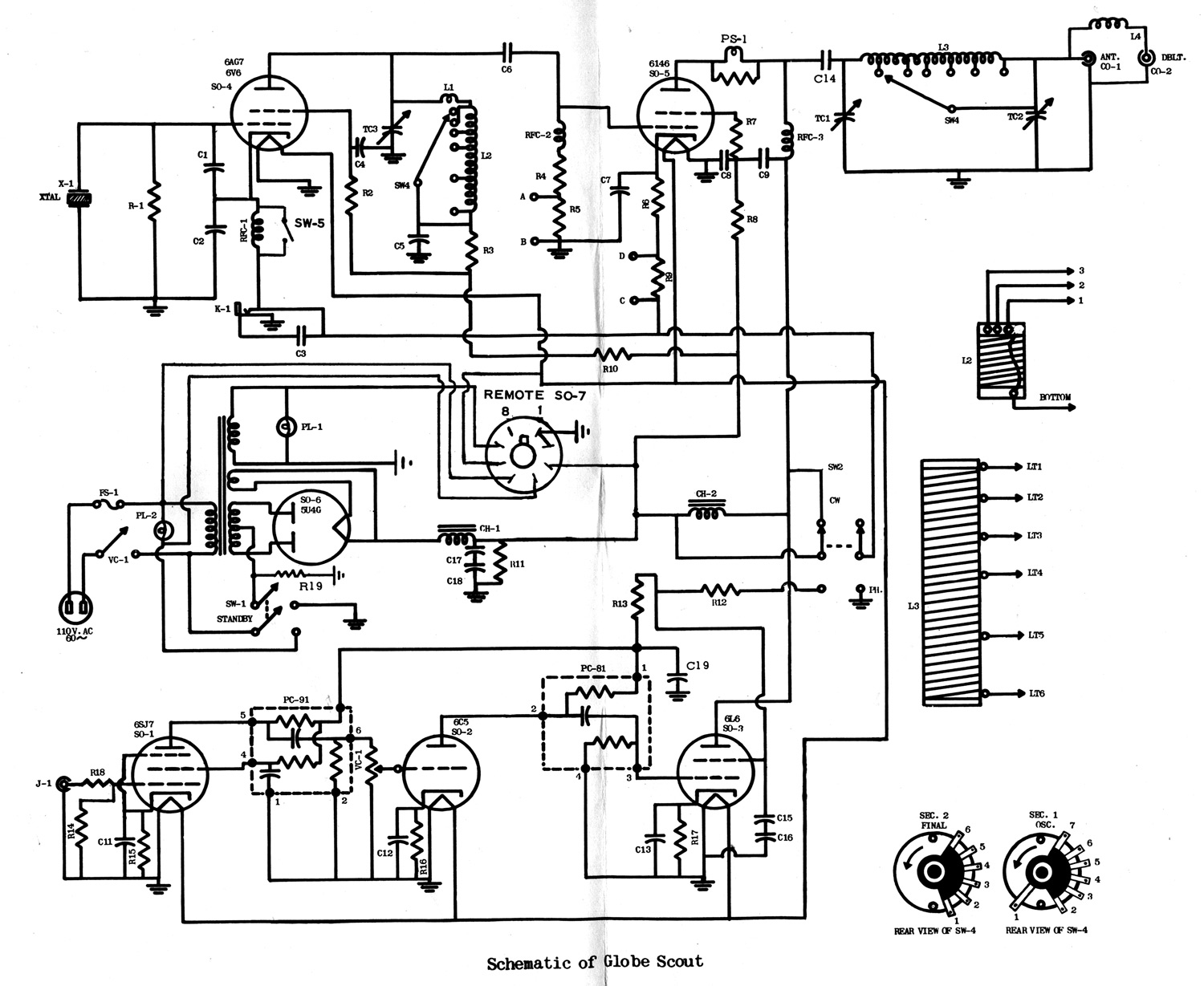

By the circuit below, we see the Globe Scout 65 design is not much different. It is impossible to know who copied what, but all the mistakes above mirror across the landscape of almost all early transmitters. Surprisingly, it appears no dedicated attempt was made to add minimal parts to clean up cathode-keyed transmitters. The only effort to improve operation came in grid block systems.

Using Constant Current Characteristic Data

I thought, since I am designing a transmitter for myself, I would walk through all the steps here.

First, I decided to eventually run a pair of 6146 tubes. I want to measure the difference between 6146 tube types at HF, and document if they really are as different as claimed. These tubes are also a good choice for CW because they have high gain and are compact for the power level.

The 6146 data looks like:

Rated maximum ICAS  anode dissipation is 25 to 35 watts depending on tube type:

### Maximum Ratings (Design Center Values)

RF Power Amplifier & Oscillator - Class C (ICAS)
Plate Voltage ................................. 750 V
Grid No. 2 Voltage ............................ 250 V
Negative Grid No. 1 Voltage ................... -150 V
Plate Input ................................... 90 W
Plate Dissipation ............................. 25 W
Grid No. 2 Dissipation ........................ 3 W
Plate Current ................................. 150 mA
Grid No. 1 Circuit Resistance
Fixed Bias .................................. 30K Ω
Bulb Temperature (At Hottest Point) ........... 220 °C

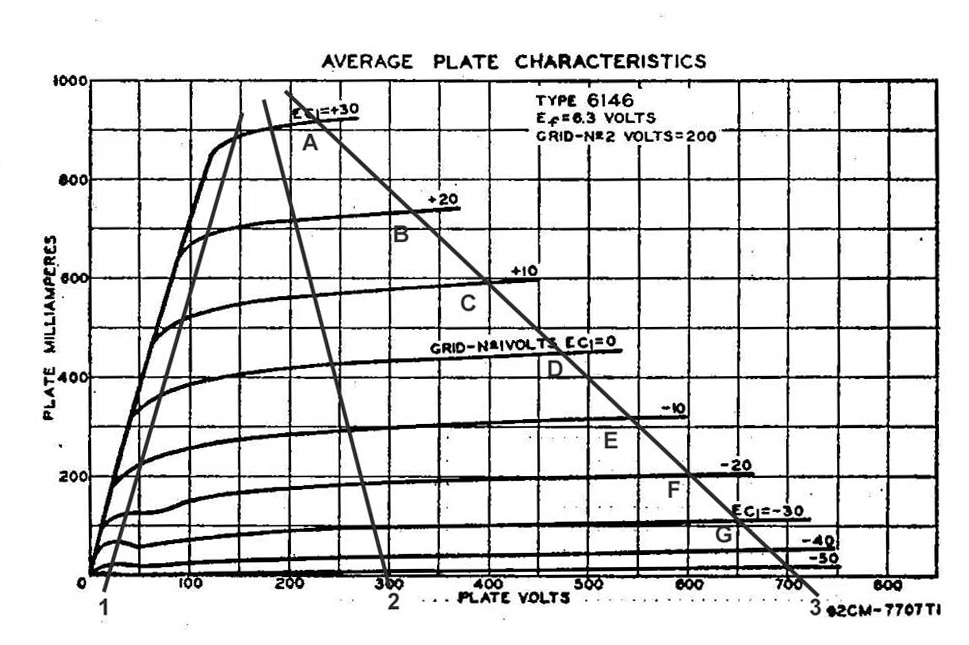

Looking at tube characteristics we can pick a zero drive bias point based on limiting plate dissipation at 20 watts with 700 volts (20/700= .029 amps or 29 mA safe no-drive current). If we look below at the -50 volt curve (just below G) we would have safe plate current with just over -50 volts bias. This will eliminate any need for a screen clamp tube!

The rated output of a class-C 6146 at 700 volts is around 65 watts. This would be with about 600 volts of peak anode voltage swing, or about 400 volts RMS voltage (because the waveform has high harmonic content, RMS voltage swing is less than .707*peak we might expect).

At 130 watts for two tubes, the plate load impedance would be about 400^2 / 130 = 1230 ohms. If we compare this estimate to the approximation Ep/2Ip=R we have 700/.26*2 = 1346 ohms. I will design around my estimate of 1230 ohms optimum plate load resistance. It is probably closer, although this value is not critical.

Many articles suggest a network Q of 10-12, but in reality there is very little difference in harmonic performance between a Q of 5-6, and a Q of 10-12.

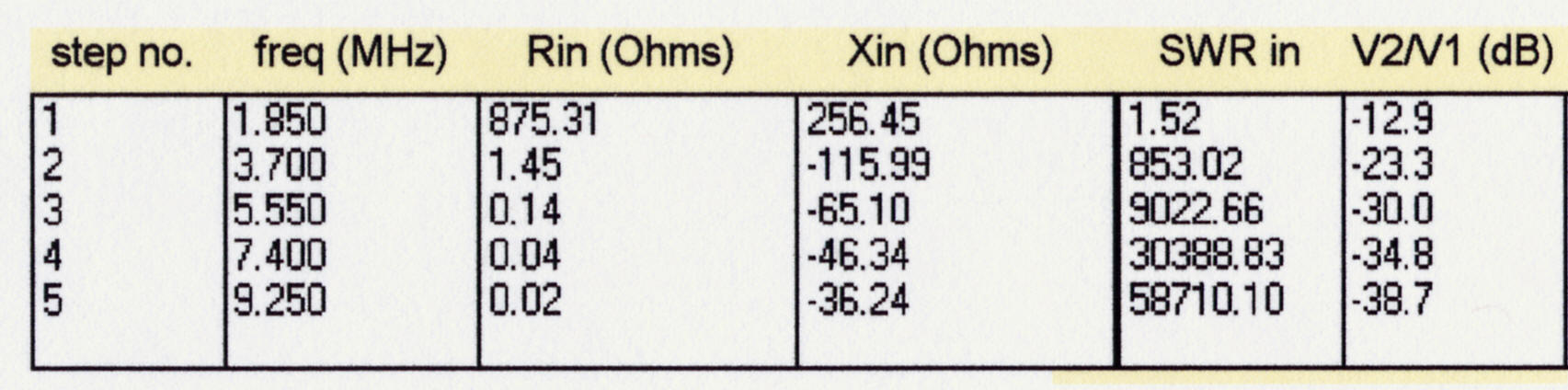

The calculated difference in 2nd harmonic voltage going from a Q of ~7.5 to a Q of 12 is only 1.4 dB. If harmonics are an issue, it is more effective to find other means to suppress them than to increase tank Q.

Good harmonic suppression is more a matter of construction and layout than it is tank Q, so long as a somewhat reasonable Q is selected.

Minimum Q for a Pi-network is generally accepted to be 1+(sqrt of Rp/Rl). This means if we plan for the highest impedance transformation we should be OK at all other settings. If we don't do that, the network might act "spongy" or tune backwards, with less loading capacitance decreasing plate current at dip.

If we plan on a 1.5:1 load SWR, we should use sqrt of (1230/33) +1= 7.1.  Q would be 7.1. This also covers us at reduced power, because tank Q increases at a faster rate than the required increase in Q as the ratio becomes higher. We will never have a condition, at reduced power, where tank Q is too low.

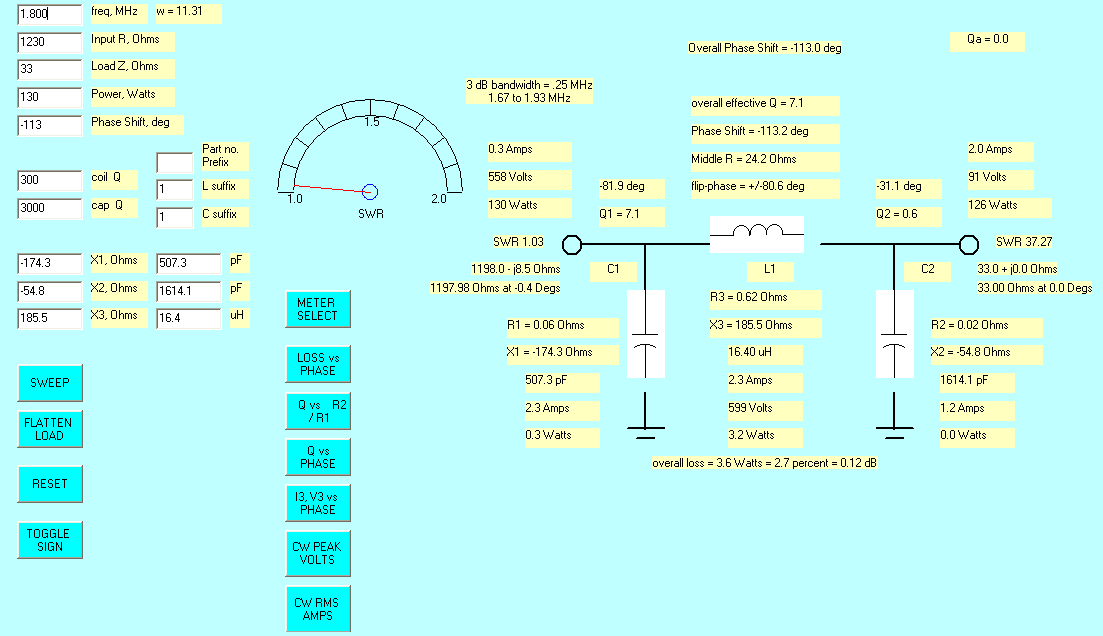

We will plan for a Q of 7.1 on all bands into 33 ohms (not 50 ohms). This gives us headroom for SWR errors!!

Because of the large values required, 160-meter tank values determine the physical area required for the tank circuit.

For proper headroom, we need just over 500 pF at 1kV for the plate tuning capacitance. I decided to use a 208 pF capacitor with a 360 pF padding capacitor for the plate. This will provide a tuning range of 375-568 pF on 160 meters. The tuning capacitor will need padded on 160 and 80 meters.

 Band Cp est C pad L C load est C pad 160 507pF 360pF 16.4µH 1100pF 680pF 80 261pF 100pF 8.4µH 830pF none 40 130pF none 4.2µH 415pF none 20 65pF none 2.1µH 208pF none 15 44pF none 1.4µH 138pF none 10 33pF none 0.7µH 69pF none

# Power Supply

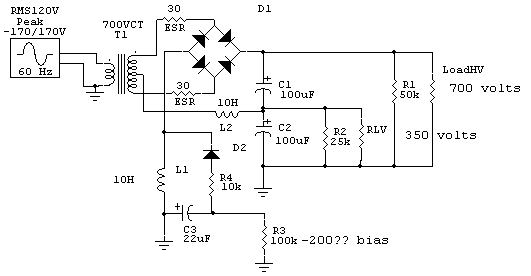

I've settled on a power supply. The schematic below is a p-spice model of the supply. R5 and R6 actually represent internal resistance of the transformer. R1, R2, and R3 represent the load by external circuits, including voltage dividers and vacuum tubes:

This supply moves the choke into the negative rectifier lead so I can extract bias from the AC voltage appearing across the choke. I've done this in a Globe Scout and it works OK.

This is a full wave bridge that uses the transformer center tap to obtain half voltage for the low level stages and screen grids of the PA tube. R1 is the HV load, R2 the low voltage load, and R3 the bias system.

Diodes can be conventional 1N4007's.

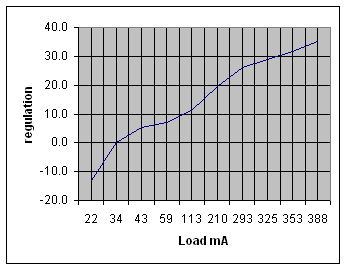

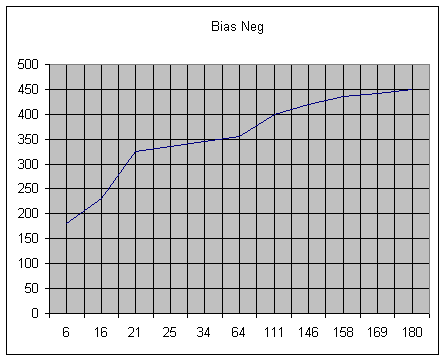

Here is how the real-world supply actually tested in a load-pull as R1 was varied. It looks like I have a good 100 watt supply, and a marginal 150 watt supply. This should be suitable for a single 6146B tube, or perhaps a pair:

 120   Vac Line With 50k bleeder across HV plus the additional load in left column. Current excludes bleeder. Load P load mA HV LV bias neg ESR ERS2 ESR3 Sag % 100000 6 8 758 298 180 33000 16 22 722 307 230 2518 -13.0 18500 21 34 628 317 325 7790 0.0 14000 25 43 596 319 335 3710 6089 5.4 10000 34 59 587 313 345 558 1656 3666 7.0 5000 64 113 564 301 355 425 456 812 11.3 2500 111 210 526 280 400 389 402 417 19.4 1700 146 293 498 262 420 339 366 380 26.1 1500 158 325 487 255 435 347 341 363 29.0 1350 169 353 477 249 442 349 348 343 31.7 1200 180 388 465 240 450 351 350 349 35.1

Supply ESR looks to be around 350 ohms or so. I tried several chokes and couldn't find anything better, and no matter how reasonable bleeder current or how much I increase inductance I can't seem to get less than 700 volts no load from my 700VCT transformer. I'm working on stabilizing the supply more if possible.

### Power Supplies

Power supplies are first, because everything depends on them. A transmitter's cleanliness and operating consistency can only be as good as the power supply permits.

Old power supplies were often not that good. Most supplies used filter chokes, which can be a very good thing with high vacuum rectifiers (reducing peak current). Unfortunately, input chokes were often the wrong size for the bleeder current, making regulation and peak currents worse than not even using a choke! There is nothing worse than carefully following a recipe and seeking out specific parts, just to have disastrous voltage regulation when done.

The primary advantage of a choke input filter is reduction of peak currents. By virtue of energy storage and release, a properly-sized choke provides a smoothly changing voltage boost throughout the low voltage part of the supply sine wave. Conversely, the same choke provides a bucking voltage near peaks. The mechanism behind this voltage bucking or boosting is an inductor's tendency to readjust voltages across the inductor as it tries to maintain constant current.

A properly sized input choke causes the rectifier to draw current throughout the entire conduction period of the input cycle. This current smoothing, almost appearing as a resistive load, extends in a closed loop from power mains all the way through the power transformer, rectifier system, and the first filter capacitor.

Capacitor input supplies can be very good for regulation, if high peak currents are properly dealt with. The only significant operational problems with higher power capacitor input supplies are caused by high peak currents, even while average currents are about the same as a choke input supply. A capacitor input supply draws all of the supply energy in a short period at the rising edge and just over the crest of each power line cycle. These high peak currents cause abnormal heating as they increase voltage drop in components. Capacitor input supplies can be particularly tough on vacuum tubes, and on old transformers using smaller copper sizes. To handle the apparent power factor (APF) of heavy charging currents at the leading edge of each sine wave voltage peak, capacitor input supplies should use a little larger copper winding size. The capacitor input supply, in essence, runs only on line voltage peaks. All load power is "taken off the peaks". This actually can flatten the peak of the line sine wave, causing line voltage to measure almost normal on meters even while the mains are sagging on peaks.

An example of a good power supply is in the AL1200 (AL12 series) power supplies. I specifically designed the transformer for very tight coupling with minimal flux leakage, and the largest possible copper size that would fit in the core window. Because of the low ESR transformer, peak current is often limited just by the ESR of the power mains. With a really stiff mains, the AL12 series will hold voltage within 10% from no load to full load. The price for this voltage stability is very high peak current. I've measured about 40-50 amps peak current at the repeating line sine wave voltage crest leading edges, while average current over the entire cycle is only about 12 amps. This high peak-to-average current ratio clearly calls for increased copper size throughout the primary system. Capacitor input designs must minimize series resistance, or regulation falls apart.

In comparison, a well-designed choke input supply (with properly sized choke) has an APF (apparent power factor) of nearly unity. Current is drawn in smooth step with voltage over the entire sine wave, even the descending slope of the waveform! The smooth current window allows energy to be extracted from the mains over the entire cycle. This allows much smaller copper sizes, since the choke input supply requires far less attention to transformer and power line ESR (equivalent series resistance). With a properly sized input choke and good components, the power supply's line loading appears as a pure resistance.

The bottom line on this is the user has two choices:

1.) Live with the high currents, while maintaining good life and good regulation, by using low ESR (equivalent series resistance) transformers, solid state rectifiers, and  higher value filter capacitors

2.) Use a properly designed choke input with higher ESR components. "Properly Designed" being the key.
